- Sensor model：MLX90640 resolving power：24*32, high performance and high output resolution.
- Temperature Range: -30°C~200°C, it is widely used in testing electronic products.
- Power：1000mah Bulit-in Rechargeable Baterry, Type-C Charging Port.
- Storage: Can save 100 Pictures and Read by connecting to PC.
Basic parameters
1> Sensor model: MLX90640, resolving power: 24*32
2> LCD resolving power：240*320
3> Main control chip: GD32F103C8T6
4> USB Port: Type_C
5> Power: Built in 1000Mah battery, Portable.
6> 16mb storage space，Can store 100 pictures
Mode Switch Key: press the Mode key to enter the USB flash disk mode, and the screen will close. At this time, the device needs to be connected to the computer with a usb cable. Open the computer to see the pictures in the USB disk.
Temperature Range: -30°C~200°C, it is widely used in testing electronic products,heat leakage,Automobile maintenance and outdoors.
Package lists:

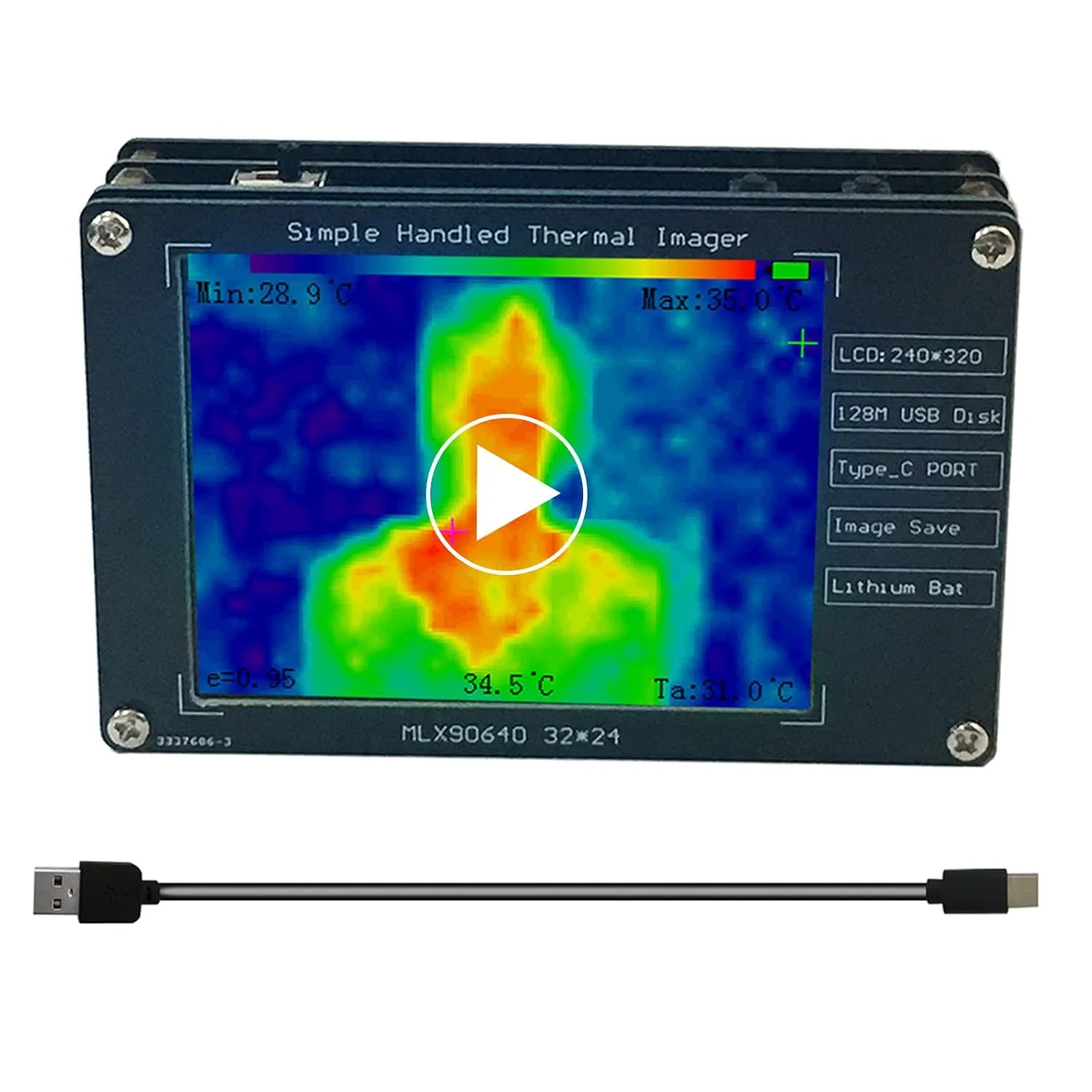

1x MLX90640 Thermal Imager
1x Usb Cable
1x User Manual
- Package Dimensions : 5.94 x 4.09 x 2.13 inches; 5.93 ounces
- Batteries : 1 Lithium Ion batteries required. (included)
- Date First Available : September 26, 2022
- Manufacturer : IWatson Electronics
- Country of Origin : China
