Key Features:
- Spigot Diameter: 150mm
- Height above roof: 500mm
- Flashing collar: 500mm x 600mm
- Total gross length: 883mm
- Suitable Pitch: 25° - 45°
- Material: Injection moulded/Vacuum formed/Ubiflex construction.
- Application: For use on a pitched roof with Tiles
- Extraction: Suitable for mechanical extraction such as bathroom fans & cooker extractors
- Manufacturers Product Code: 501456801 UB35 MultiVent 150mm Tile 25-45°
Description:

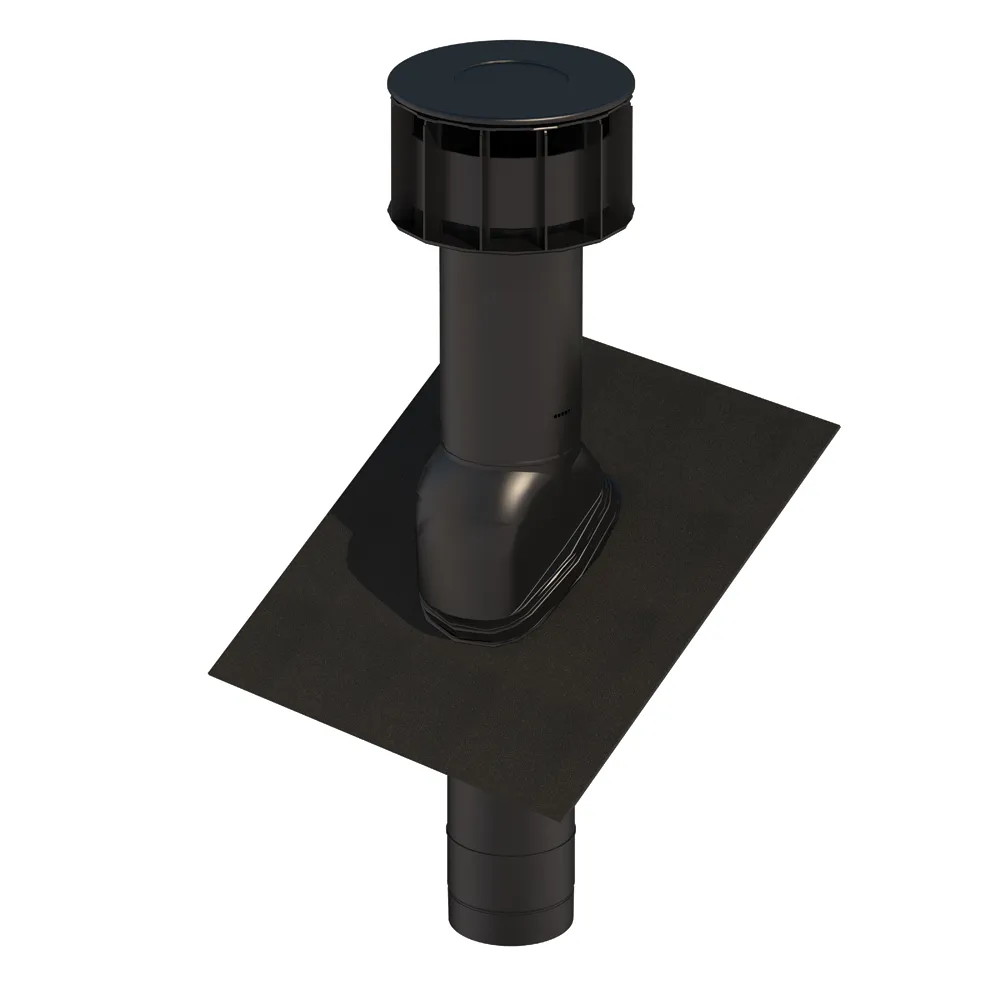

Ubbink multivents are specially designed for systems requiring a low resistance terminal. The multivent service terminals are suitable for mechanical and natural (passive) ventilation installations. They are a stack terminal for tiles and have low pascal resistance figures. Multivents are suitable for roof pitches of 25º - 45º and come complete with flashing.
These units are suitable for roof pitches over 25° and for mechanical extraction.
The 150mm diameter provides 20,000mm² free vent area.
