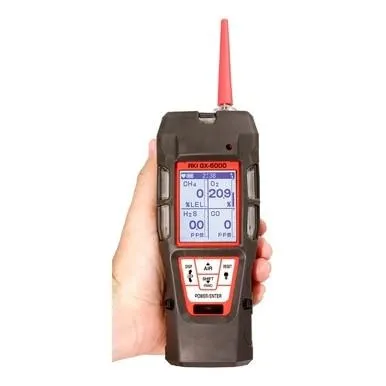

Introducing the GX-6000 6 Gas Sample Draw PID and Super Toxics Gas Monitor from RKI Instruments. This powerful hand-held instrument is capable of simultaneously monitoring up to 6 gases. This gas monitor comes preconfigured with sensors for the 4 standard confined space gases which include combustibles, LEL, O2, CO, & H2S. Additionally, we've also customized this gas monitor's smart channel with a PID high range 6,000 ppm sensor. You may also select a 6th Super Toxics sensor (NH3 or HCN). Includes Li-Ion battery pack with 100-240 VAC Charger. Contact us for additional battery, PID sensor and IR sensor options. Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 is a powerful tool. The GX-6000 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC's as well as a list of 8 of the most recently used VOC's. The GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6000 will easily alert users when needed. Ideal applications include: confined space entry, hazmat response teams, arson investigation, remediation site, perimeter monitoring, leak detection and landfill monitoring.
For more options (such as a different PID range) please call us at 1-800-829-9580 to configure this product.
Applications: Confined space entry, Hazmat response teams, Arson investigation, Remediation sites, Perimeter monitoring, Leak detection, Landfill monitoring, Wink tank entry
Key Features:
- Monitor up to 6 gases
- 2 smart slots that auto recognize PID, IR, and super toxic sensors
- Library of over 600 VOCs
- PPM Leak Check mode
- Man-down alarm
- Panic alarm
- Auto display rotation
- LED Light source
- Internal sample pump
- Glove friendly buttons
- Light weight, small, rugged IP-67 design
- Interchangeable battery packs for Li-ion / alkaline
- Operates up to 14 hours on Li-ion battery pack, fully recharges in 3 hours
- Field replaceable sensors, batteries, filters & pump
- Current time display
If Cl2 is chosen as the 6th sensor, there is a strong interference between the H2S and Cl2. However, this configuration is possible as long as the end-user is well aware of the limitation and is fine with that. H2S suppresses the Cl2 reading. if Cl2 sensor is exposed to 25 ppm H2S for 2 minutes, it takes an hour or 2 for the Cl2 sensor to recover. There is a special procedure to calibrate the monitor with the H2S and Cl2 sensor.
- Cl2 cylinder needs to have a dedicated regulator which should not be used with any other gas specially H2S. Teflon lined calibration tubing should be used.
- 5 ppm Cl2 is recommended to calibrate the Cl2 sensor. After conditioning the regulator and tubing, it is recommended to apply the calibration gas for 5 minutes while calibrating.
- Cl2 senor should always be calibrated before the standard 4 gas.
Specifications Sheet:
Manual:
Datalogging Manual:
Optional Accessory: Downloading cable, USB / IrDA adapter
Part Numbers:
72-6ABX-C - GX-6000 Gas Monitor with LEL/O2/H2S/CO PID, High Range, 6000 ppm (No 6th sensor), Li-Ion Battery pack with 100-240 VAC Charger
72-6ABM-C - GX-6000 Gas Monitor with LEL/O2/H2S/CO PID, High Range, 6000 ppm, NH3 (Optional 6th Sensor), Li-Ion Battery pack with 100-240 VAC Charger
72-6ABL-C - GX-6000 Gas Monitor with LEL/O2/H2S/CO PID, High Range, 6000 ppm, HCN (Optional 6th Sensor), Li-Ion Battery pack with 100-240 VAC Charger
Cal Kits:
RKI01-81-6ABX-DLV - (Optional) Calibration Kit: 34AL cyl 100 ppm Isobutylene/H2S/CO/CH4/O2, dem flow reg, case, tubing
81-6AXX-DLV - (Optional) Calibration Kit: 34AL cyl CH4/O2/H2S/CO, dem flow reg, case, tubing For all other gases needed for the Calibration, please inquire with our Customer Service team at (800)829-9580.
