- Voltage operating range 8V to 16V.
- Rated torque : 0.048 kg.cm
- This motor is suitable for: Car Central Door Lock; Car Rearview Mirror; DIY Toys And Smart Device etc.
- Stable operation and high work efficiency.
- Applications: banking equipment, safes, toys, research and design of small toys, DIY, auto parts, electronic game consoles, remote control curtains, locks, shredders, copiers, safes and other electrical appliances.
The following is the product information

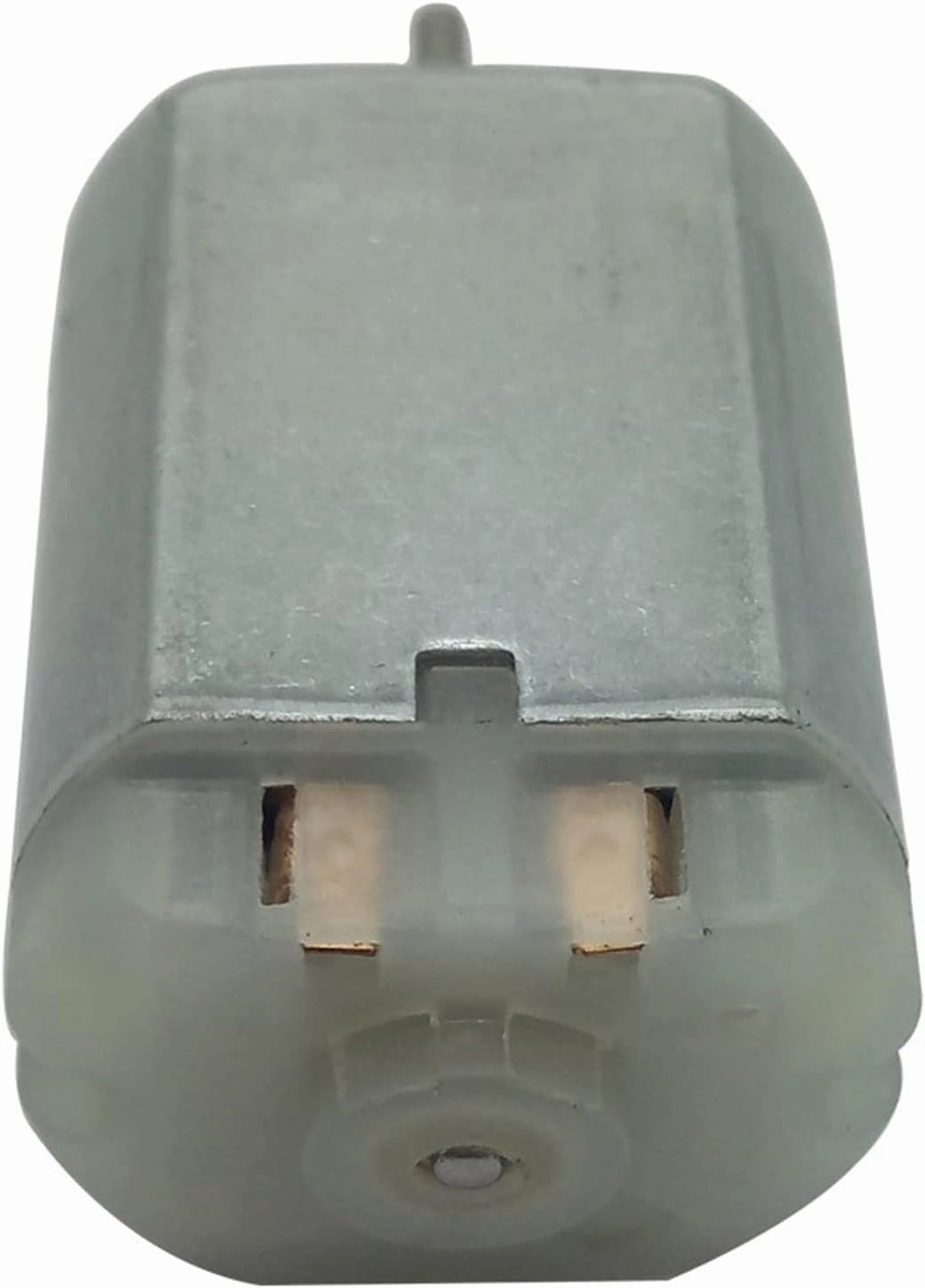

(1) The model of the motor : FC-280PC
(2) Voltage operating range 8V to 16V.
The following parameter information is the parameter of the motor connected to the DC voltage of 12V. If it is not DC 12V, the motor parameters will also change.
(3) Rated voltage : 12 volts
(4) No load speed : 12500 rpm/min (plus and minus 10% fluctuation)
(5) Load speed : 11090 rpm/min (plus and minus 10% fluctuation)
(6) Power : 5.52 W
(7) Rated torque : 0.048 kg.cm
(8) This motor is suitable for: Car Central Door Lock; Car Rearview Mirror; DIY Toys And Smart Device etc.
(9) Important reminder: The measuring instruments we use are different, so the data for measuring the size of the motor will be slightly different. If your device has restrictions on the installation of the motor, you need to check it before buying.

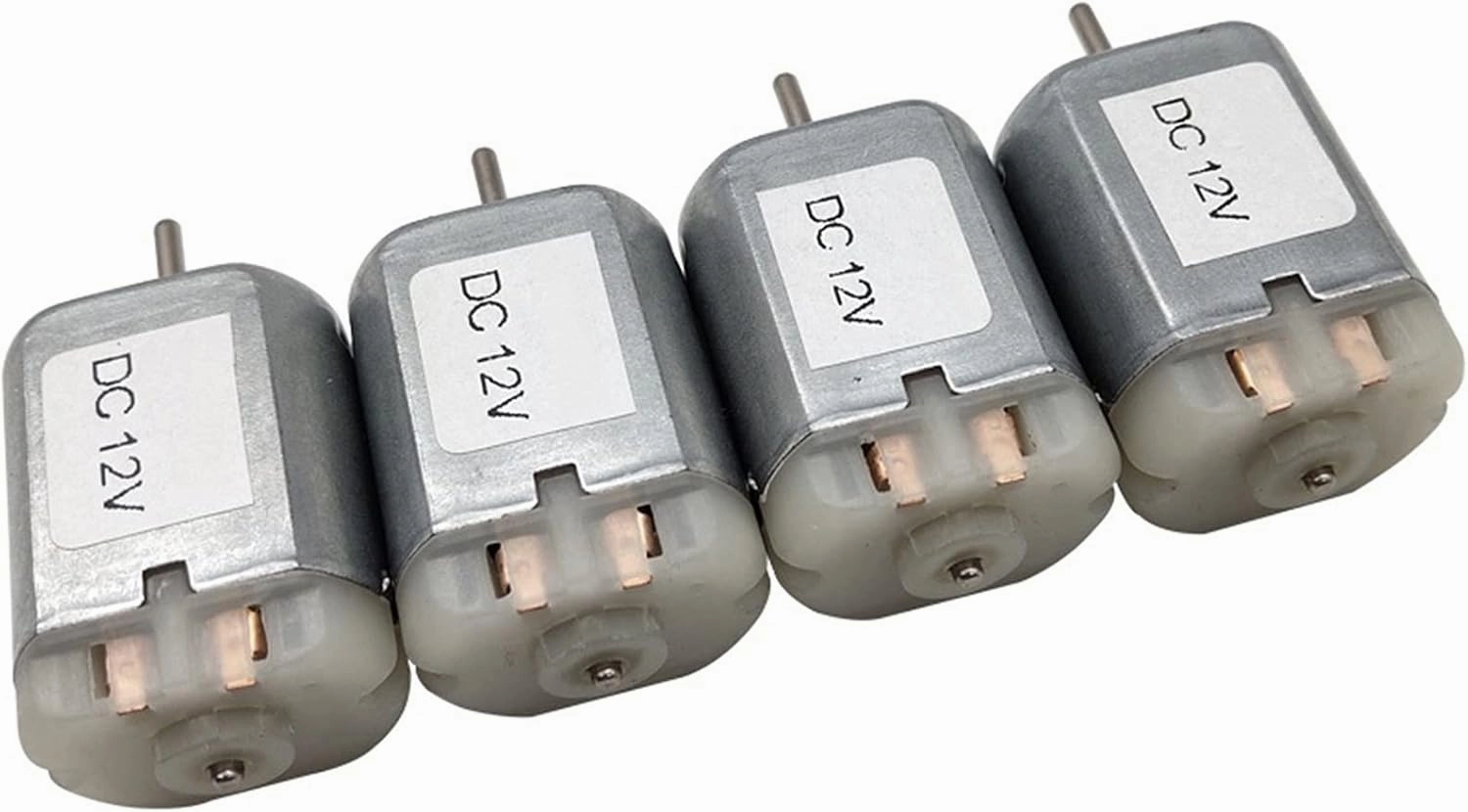

(10) Packaging : If you choose 2PCS, you will receive 2 pieces of the motors ; If you choose 4PCS, you will receive 4 pieces of the motors
If the motor is connected to a non-rated voltage input, all parameters of the motor will change.
Sincere reminder:
The measuring instruments we use are different, so our measurement results may fluctuate slightly. If your project has strict installation restrictions, you need to check it before buying. Thanks
