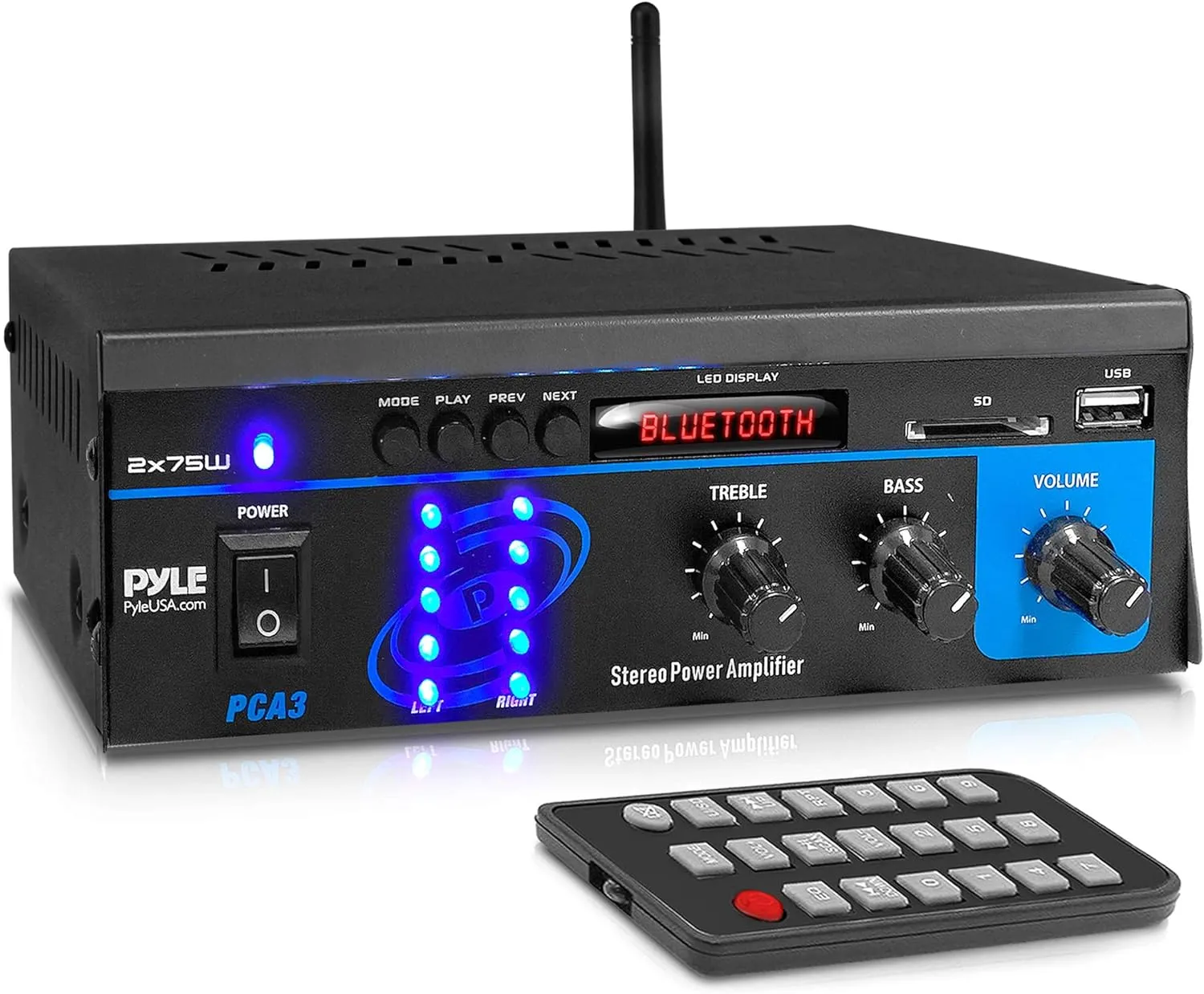

Pyle Home Audio Power Amplifier System – 2X75W Mini Dual Channel Bluetooth Stereo Receiver Box with LED – Amplified Speakers, CD Player, Theater via 3.5mm RCA – For Studio, Home Use
$28.00
$40.00
Save: $
Style:
Basic model
Upgraded Model
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$
Product Details
2x75 WATT POWER: The Pyle Dual Channel Bluetooth Audio Amplifier is perfect for home theater acoustic sound system. Gives you 2x75 watts peak power which can be used for subwoofer speakers with 4-8 ohms impedance, enjoy quality music and movies
MULTIPLE SOURCES: This small personal digital amp box lets you connect external audio sources such as tuner, CD player, tape deck, camcorder, VCR to the 3.5mm RCA (L/R) LINE input and enjoy enhanced amplified acoustic audio reproduction
LED INDICATOR: The mini professional integrated stereo receiver features LED indicator light above the power switch to indicate power is turned ON. The unit also features blue LED output level display
PUSH TYPE SPEAKER TERMINAL: It lets you easily connect speaker wires directly to the amplifier. The speaker impedance ranges from 4 to 8 Ohms for the general stereo output. The total speaker impedance must be at least 4 Ohm per channel at stereo mode
EQ CONTROLS: The improved indoor smart compact bookshelf speaker sound amplifier features crisp and responsive buttons for the power switch. It also features rotary knob controls for the master volume, bass, treble adjustments
Product Description
PyleHome Model : PCA3
Stereo Power Amplifier, 2 x 75 Watt
Stereo Power Speaker Amplifier - Compact Audio Control Amp System, RCA Input, 150-Watt MAX
RCA Jack Input
2 x 75 Watt MAX Power
Push Type Speaker Outputs
Blue LED Output Level Display
Power On/Off Switch and LED Indicator
Treble, Bass and Master Volume Controls
Compatible With Audio/Computerize Devices (MP3 Players) Via 3.5mm To RCA Converter
Dimensions: 7.48''W x 2.87''H x 5.39''D
This mini stereo power amplifier provides up to 75 W of power on each channel at 4 ohms. Connect your inputs using the RCA jacks. Outputs over standard speaker push jacks. It's compatible with any audio or computer device - you can even hook up an iPod using a 3.5mm to RCA jack converter. Treble, bass, and volume controls on the front let you tweak your sound to exactly how you want it. Runs on 110 or 220 V.
From the Manufacturer

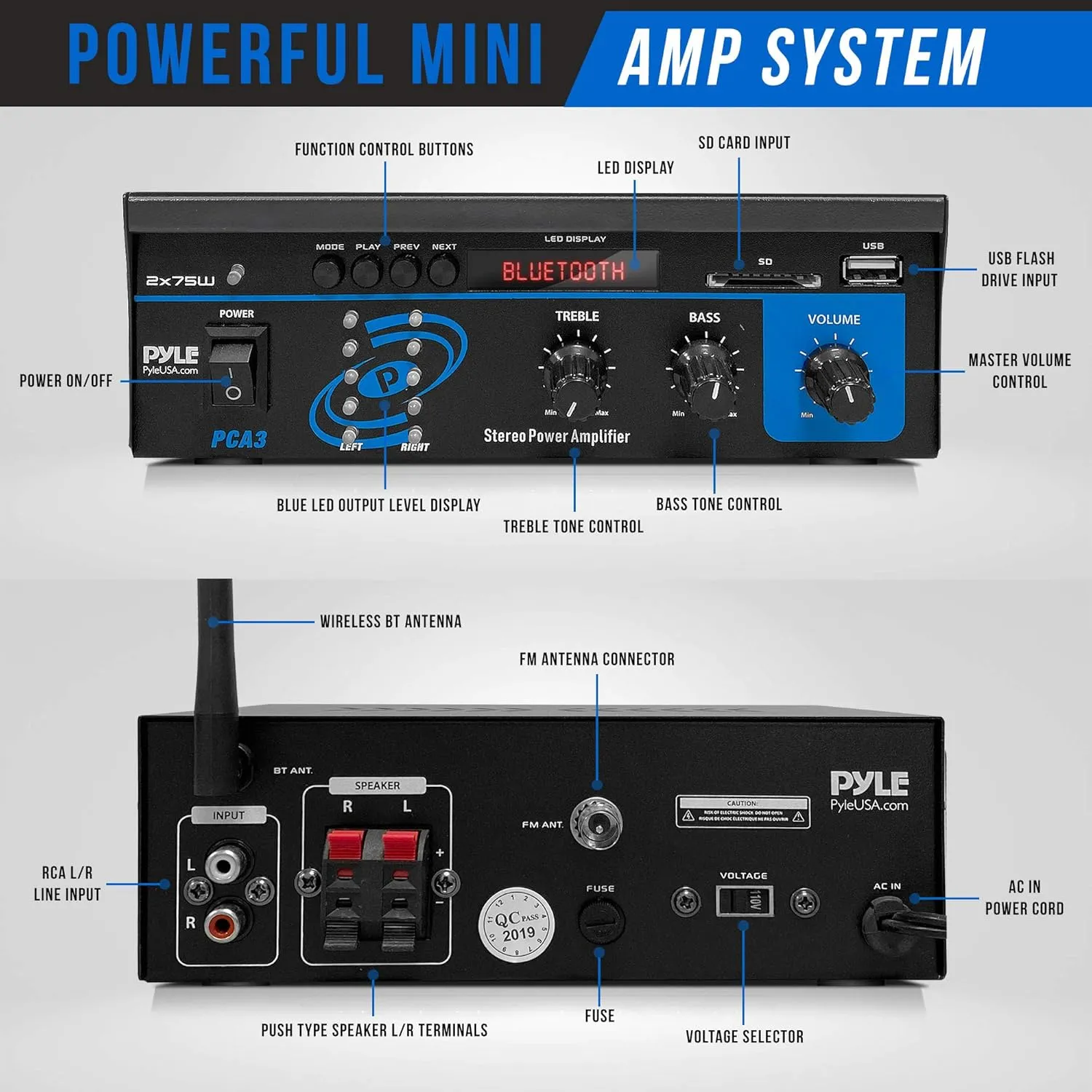

Front View Click here for a larger image Connection Diagram Click here for a larger image Stereo Power Amplifier Click here for a larger image Back View Click here for a larger image
The Ultimate Stereo Power Amplifier
This amplifier gives you the power and versatility you need to create a professional sound system. Its wide frequency response makes it suitable for amplifying any type of audio including music or vocals. It can be used in meeting halls, restaurants, schools, stores, and at home --the perfect solution for paging systems anywhere. Get the power you need with 2 x 75 Watt to handle all your audio needs.
110/220 Voltage Selector
This amplifier has selectable input voltage from 110 V/60 Hz (the standard in USA and Canada) to 220 V/50 Hz (for European operation). Please make sure the switch is in the proper position before operating.
Compatibility
Compatible with CD players, walkmans, and computerized devices, including MP3s, via 3.5 millimeter to RCA converter.
RCA L/R Line Input
Lets you connect the desired line input source.
Take Control
Use the control center panel located on the face of the unit to make adjustments to microphone volume, master volume, balance, bass, and treble.
Push Type Speaker Terminals
Lets you easily connect speaker wires directly to the amplifier.
Replaceable Power Fuse
The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse and replace it if necessary. (Replacement fuse to use: 1.5-amp, 250-volt, fast-acting 5 x 20 millimeter fuse --not included)
Additional Features
Harmonic Distortion: 0.3%
2 x 75 Watt RMS at 4 Ohm
Blue LED Output Level Display
Frequency Response: 20 Hz-40 kHz
Power Fuse: 1.5 A, 250V Fast-Acting (5 x 20 millimeter)
Power Requirement: 120 V AC 50 Hz/230 V AC 50 Hz
Tone Controls: Bass and Treble: /-10dB (100 Hz/10 kHz)
Dimensions: 8.27 x 2.72 x 5.39 inch (190 x 70 x 137 millimeter)
Is Discontinued By Manufacturer : No
Product Dimensions : 7.7 x 4.1 x 8.9 inches; 1 Pounds
