GW12N20 DC 6V 12V smallest in the maket Worm gear motor Low speed Ultra mini gear box Reversible Electric engine for Smart car Robot Lock
GW12N20 Mini DC Worm Gear Motor
Item
Voltage
(V)
No Load
Speed
(r/min)
Loading
Speed
(r/min)
Rated
Torque
(N·cm)
Rated
Current
(A)
Rated
Power
(W)
Dimension
(exclude shaft)
Shaft (mm)
Net
Weight
GW12N20-3-15
3V
15
11
1
80
0.05
35x12x10mm
Single
D shaft
Φ3*8
12g
GW12N20-3-30
30
22
100
GW12N20-3-45
45
34
120
GW12N20-6-30
6V
30
22
2
100
0.1
GW12N20-6-60
60
45
150
GW12N20-6-90
90
65
200
GW12N20-12-60
12V
60
45
3
250
0.1
GW12N20-12-120
120
90
300

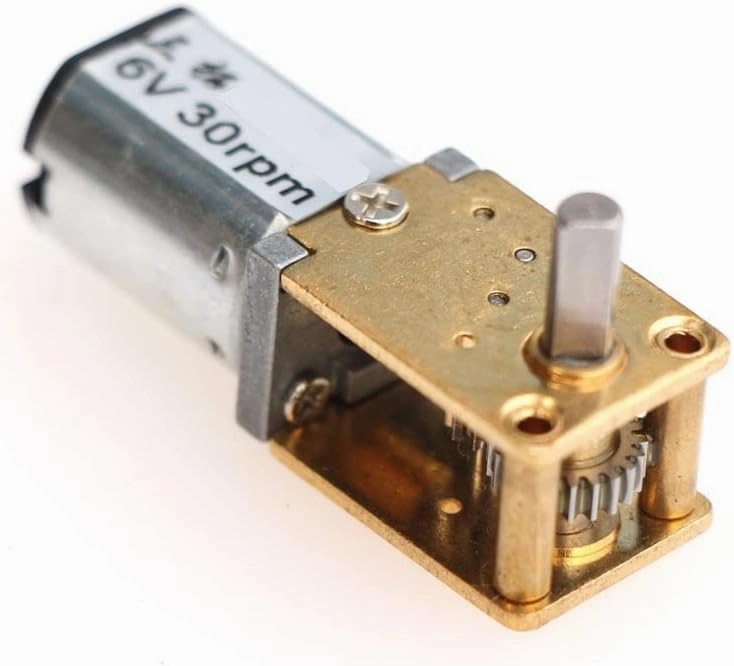

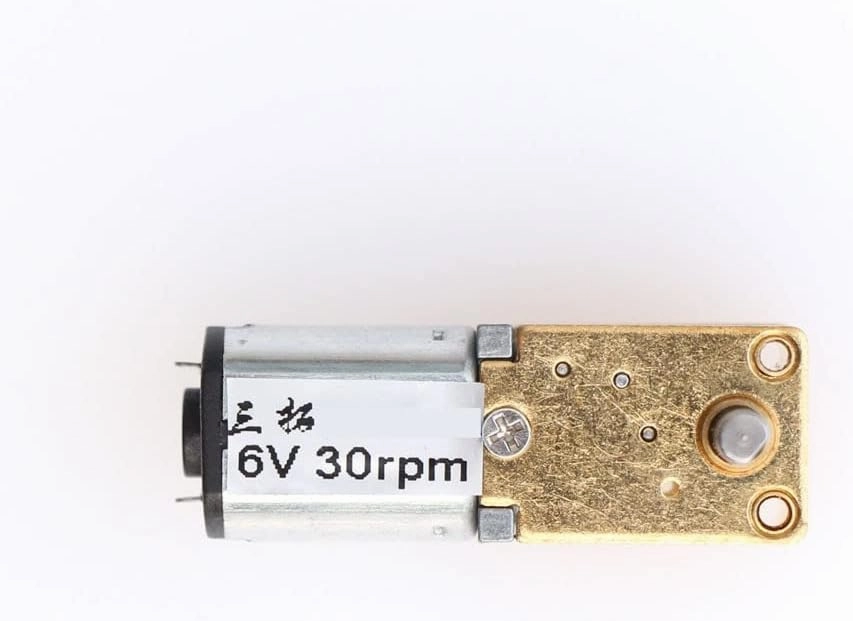

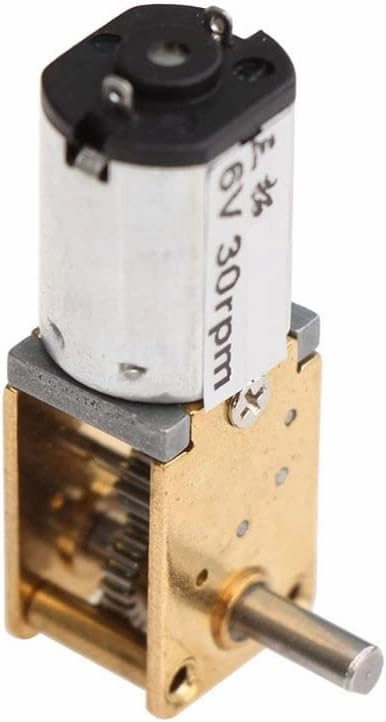

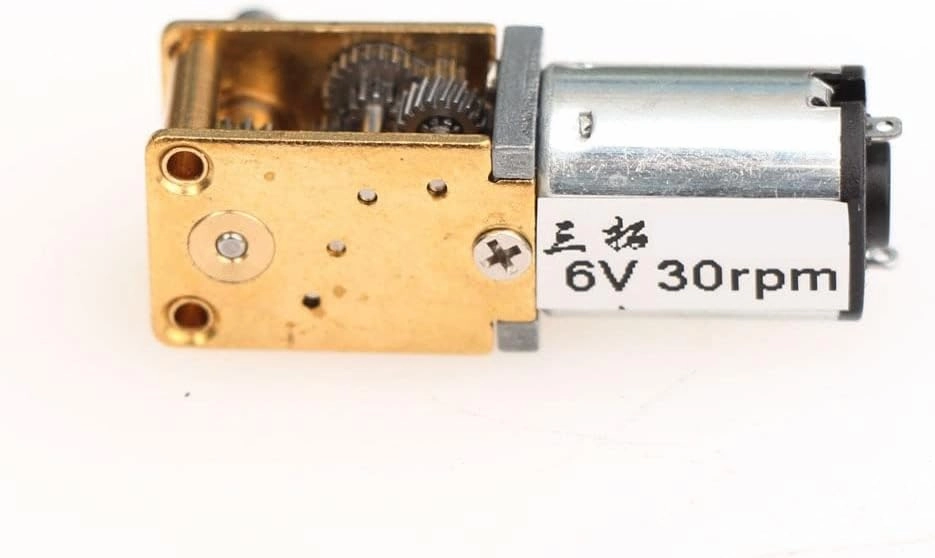

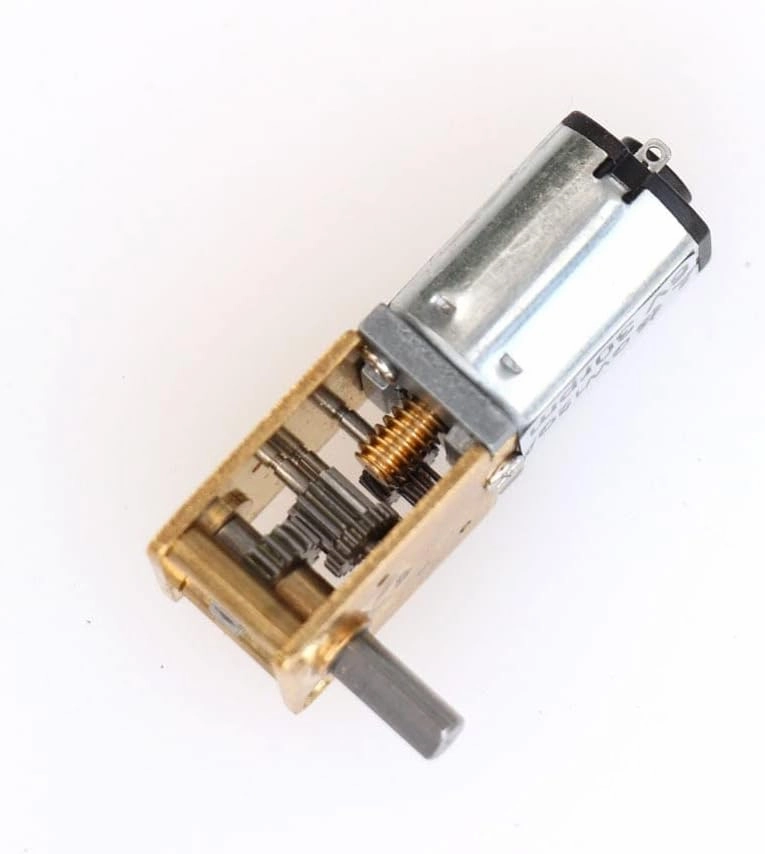

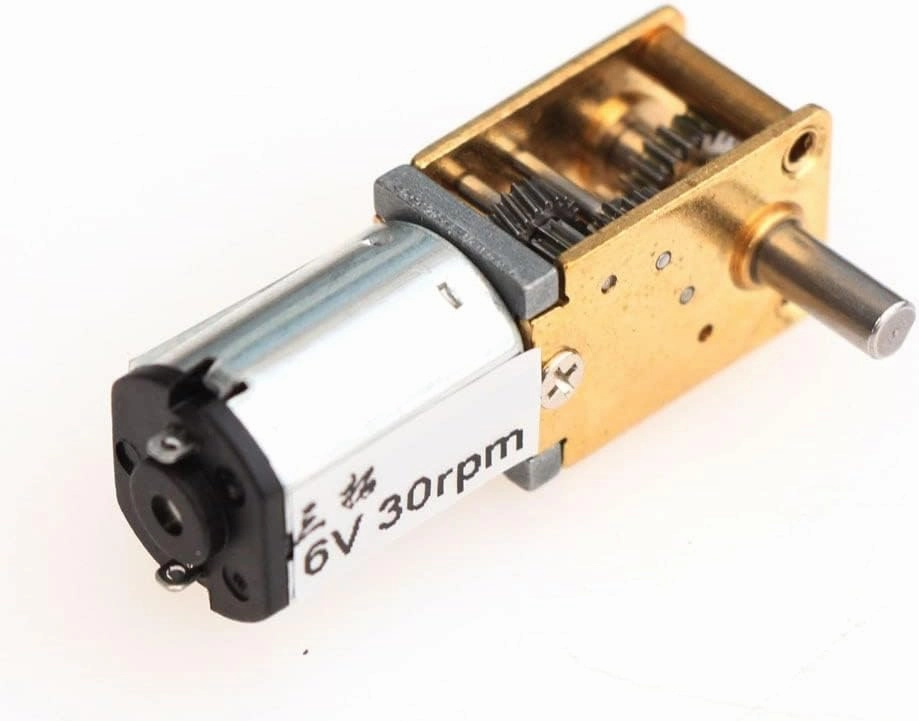

This type is a miniatureDCWorm Gear Motor, reversible, variable and self-lock.
1). With self-locking function, the output shaft can't be rotated by certain force when switching off.
2). Gearbox output shaft and motor shaft are 90 degrees, it's widely used in various of occasions that require special install size.
According to these characteristics, Worm Gear Motors are widely used in windows and doors opening and household electrical appliances, Car model, Boat model, Robot model,DIY engine, Industry application, house application, home automation,mini winch and other occasions.
More to love:
DC Worm Gear Motors Catalogue, click to view more:
How to select a motor.
You should confirm the Voltage, Torque, Structure, Work rule.
Voltage: DC or AC, Voltage value.
Structure: Right Angle Output Shaft, Straight Output Shaft, Go and Back (reciprocating motor), Line Working (linear actuator).
Work Rule: How long does it work in a period?
Torque: Constantly Working Torque should not exceed 75% of the motorrsquos Rated Torque. Instantly Working Torque should not exceed motorrsquos
