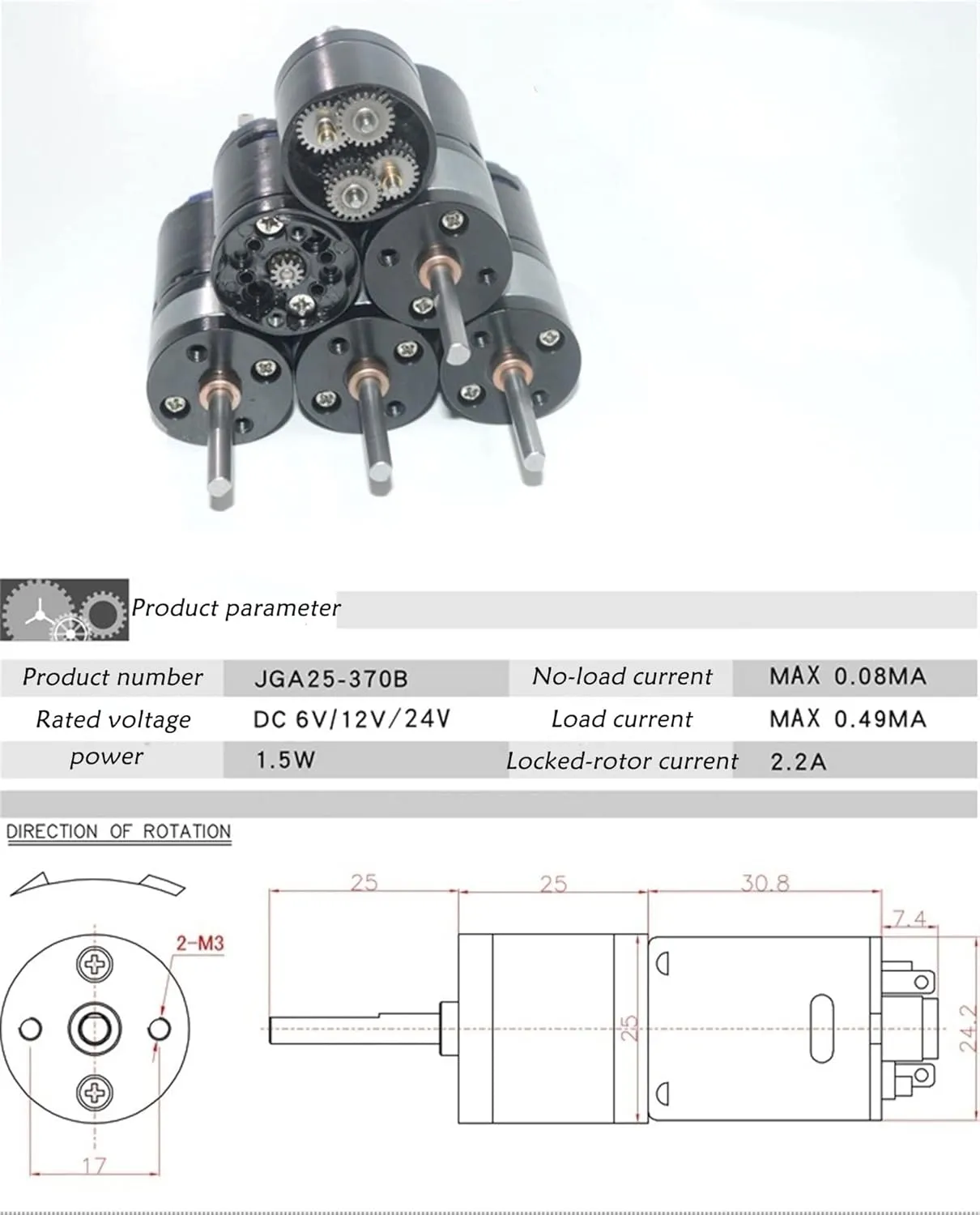

- Power: 1.5W
- No-load current: MAX 0. 08MA Rated voltage: DC6V/12V/24V
- Load current: MAX 0. 49MA Locked-rotor current: 2.2A
- Low noise, high torque and long life of electronic starter
- Application: robot, sweeper robot, toy model, DIY handmade
When you use the electronic starter, there must be no binding objects. For example, do not inject the adhesive into the bearing through the rotating bearing, which will hinder the operation of the electronic starter.
The rotation of the shaft may have the opposite effect on the life of the electronic starter. In order to extend the life, check whether your load
It must not be overloaded or there are items that hinder rotation at the end of the shaft.
Manufactured into an eccentric heavy load, harmful to the life of the electronic starter.
Do not store it in surrounding high temperature or extreme humidity, and do not place it in corrosive gas, which will reduce the effect of the electronic starter.
Do not run the electronic starter in the surrounding high temperature and humidity.
When soldering is needed on the and negative electronic starter terminals of the power supply, the temperature of the soldering iron should be 340℃±40℃, and the heating time should be within 3 seconds.
