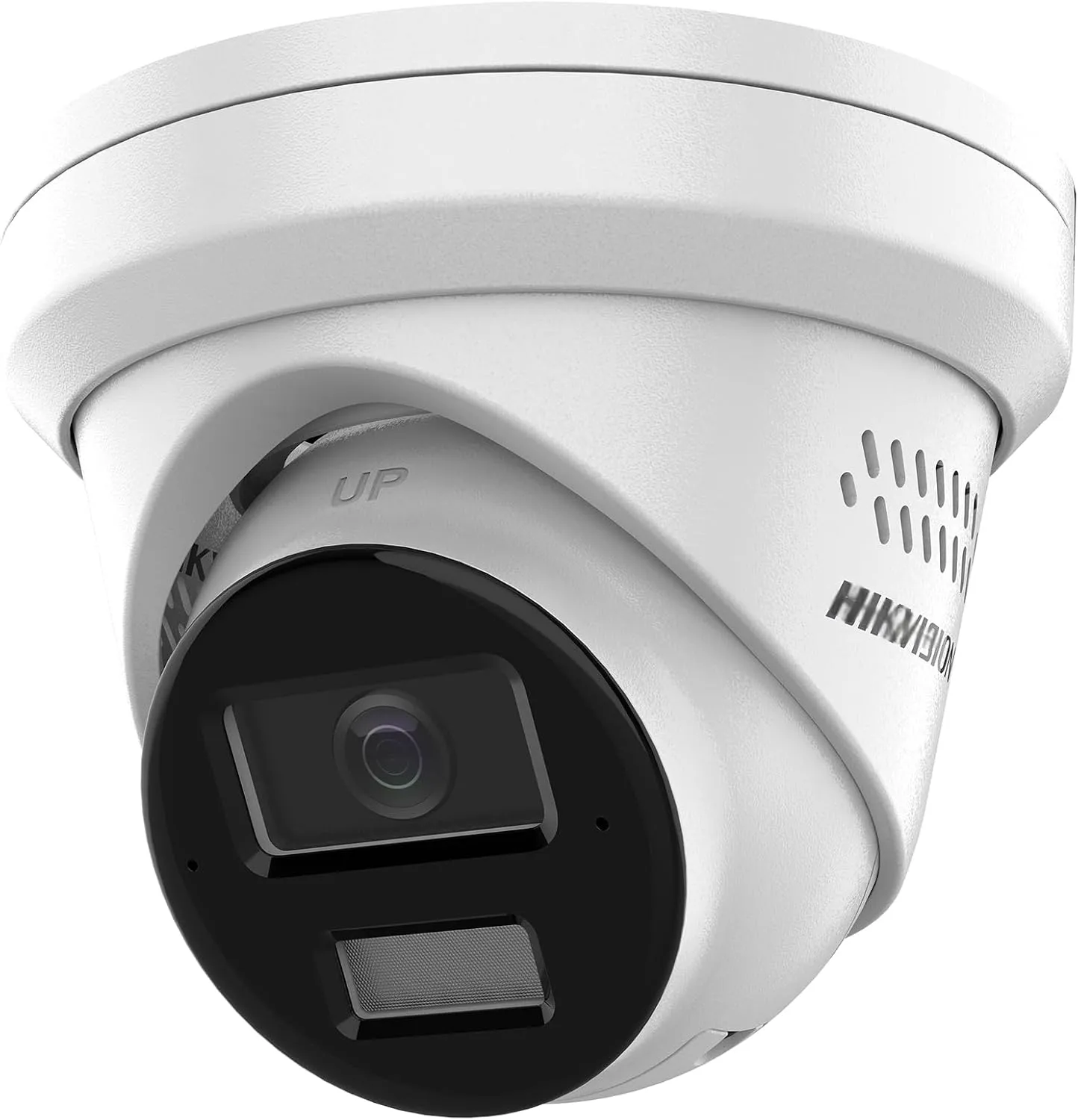

- 4MP HD Surveillance with Smart Hybrid Light: Enjoy sharp 4MP HD resolution (1/2.9" CMOS sensor) and 120dB True WDR for vivid details in any lighting. The built-in IR and white LED lights deliver up to 30m night vision, ensuring 24/7 security for homes, offices, and driveways. Advanced H.265 compression maximizes storage efficiency without sacrificing quality;
- AcuSense: Focus on person and vehicle classification bAI-Powered AcuSense for Accurate Human/Vehicle Alerts: This smart outdoor security camera uses deep learning to distinguish people and vehicles, drastically reducing false alarms. Customize motion zones (line crossing, intrusion) and receive instant alerts via email, FTP, or NAS;ased on deep learning
- Stunning Full-Color & IR Night Vision Up to 98ft: Switch seamlessly between infrared and white light modes for optimal nighttime monitoring. The 850nm IR LEDs provide clear B&W footage, while the white light enables full-color vision—zero subscription fees, perfect for standalone or NVR systems;
- Easy Plug-and-Play PoE Setup with Multiple Storage Options: Power over Ethernet (802.3af) or 12VDC for hassle-free installation. Store footage locally on a microSD card (up to 512GB) or network storage (NAS). Works with iVMS-4200,Hik-Connect,Hik-Central, and web browsers—no plugins needed. A true weatherproof solution for indoor/outdoor use;
- Two-Way Audio & Active Deterrence for Real-Time Security: Built-in microphone and speaker enable clear communication, while the strobe light and alarm scare off trespassers. Monitor remotely via the free Hik-Connect app—no DVR/NVR required. Perfect for elevators, corridors, and construction sites;
- Rugged IP67 Metal Housing for Extreme Conditions: Built to withstand harsh environments with metal casing and IP67 dust/water resistance. Operates in -30°C~60°C (-22°F~140°F), offering reliable performance year-round. Any questions,our seller team is just one email away for any product inquiries—prompt and helpful support guaranteed!
Camera
Image Sensor:1/2.9" Progressive Scan CMOS
Max. Resolution:2688 × 1520
Min. Illumination:Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light Shutter Time:1/3 s to 1/100,000 s
Day & Night:IR cut filter
Angle Adjustment:Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type:Fixed focal lens, 2.8mm
Focal Length & FOV:2.8 mm, horizontal FOV 101°, vertical FOV 57°, diagonal FOV 118°
Lens Mount:M12
Iris Type:Fixed
Aperture:F1.6
Depth Of Field:2.8 mm: 1.3 m to ∞
DORI:2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type:IR,White Light
Supplement Light Range:Up to 30 m
Smart Supplement Light:Yes
IR Wavelength:850 nm
Video
Main Stream:50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression:Main stream: H.265/H.264/H.264 /H.265 ,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate:32 Kbps to 8 Mbps
H.264 Type:Baseline Profile,Main Profile,High Profile
H.265 Type:Main Profile
Scalable Video Coding (SVC):H.264 and H.265 encoding
Bit Rate Control:CBR,VBR
Region Of Interest (ROI):1 fixed region for main stream and sub-stream
Target Cropping:Yes
Audio
Audio Compression:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate:8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering:Yes
Network
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View:Up to 6 channels
API:ON-VIF (Profile S, Profile G),ISAPI,SDK,ISUP
Security:Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
User/Host:Up to 32 users;3 user levels: administrator, operator, and user
Client:iVMS-4200,Hik-Connect,Hik-Central
Network Storage:NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Web Browser:Plug-in free live view: Chrome 80 , Firefox 80 , Edge 89 , Safari 13 ,Local service: Chrome 80 , Firefox 80 , Edge 89 , Safari 13
Image Parameters Switch:Yes
Day/Night Switch:Day,Night,Auto,Schedule
Wide Dynamic Range (WDR):120 dB
SNR:≥ 52 dB
Image Enhancement:BLC,HLC,3D DNR
Privacy Mask:8 programmable polygon privacy masks
Interface
Ethernet Interface:1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage:Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key:Yes
Built-In Speaker:1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB
Audio:Built-in Microphone: Arrayed dual-microphone
Event
Basic Event:Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage:Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing
Deep Learning Function:Perimeter Protection;Line crossing, intrusion;Support alarm triggering by specified target types (human and vehicle)
General
Power:12 VDC ± 25%, 1 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE: IEEE 802.3at, Class 4, max. 16 W
Material:Metal
Dimension5" × 3.8"
Weight:1.1 lb
Storage Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language:33 languages
General Function:Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Flashing Light:SRB models: Red and Blue Light;Other models: White Light
