AFE6B150-230 FlashRite Roof Flashing

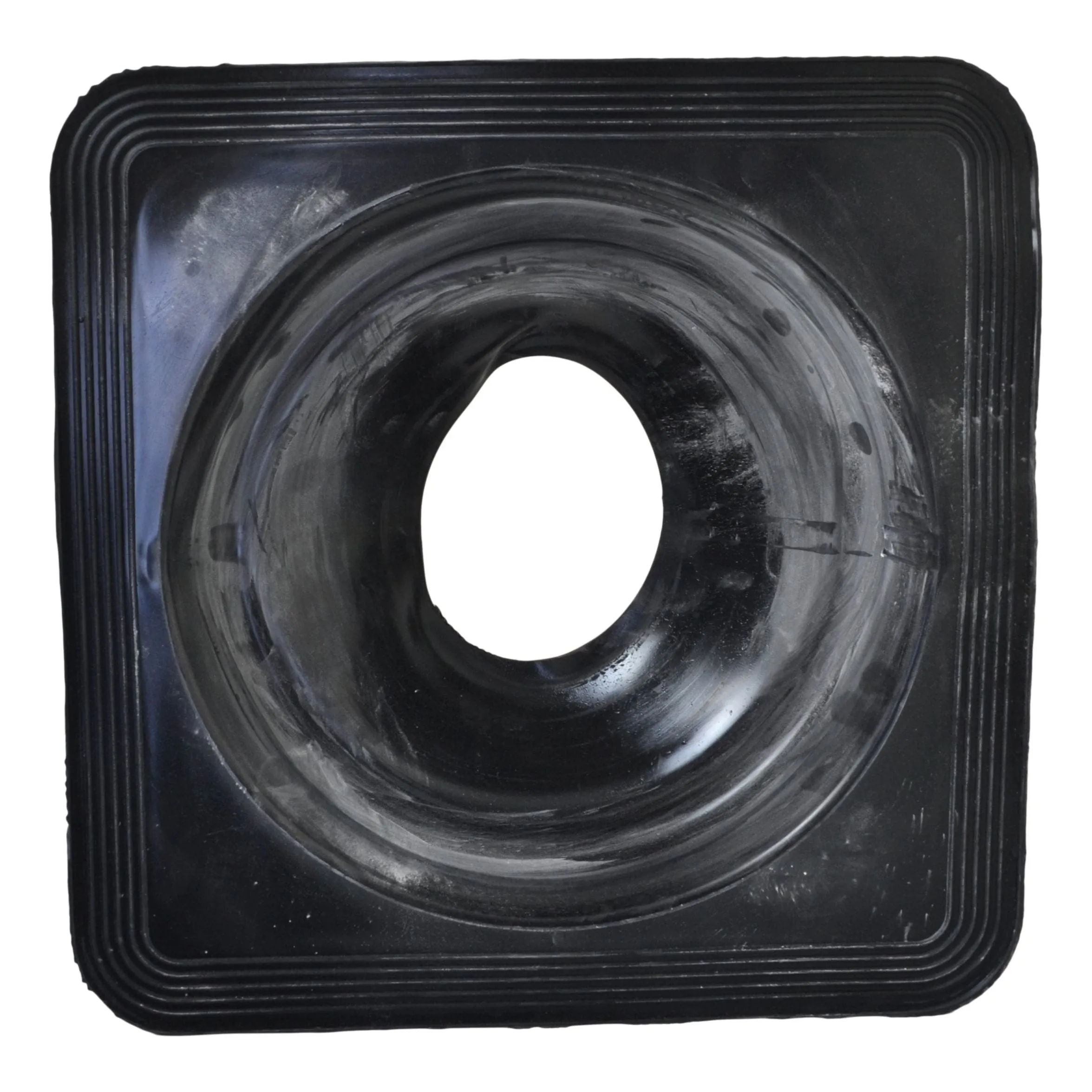

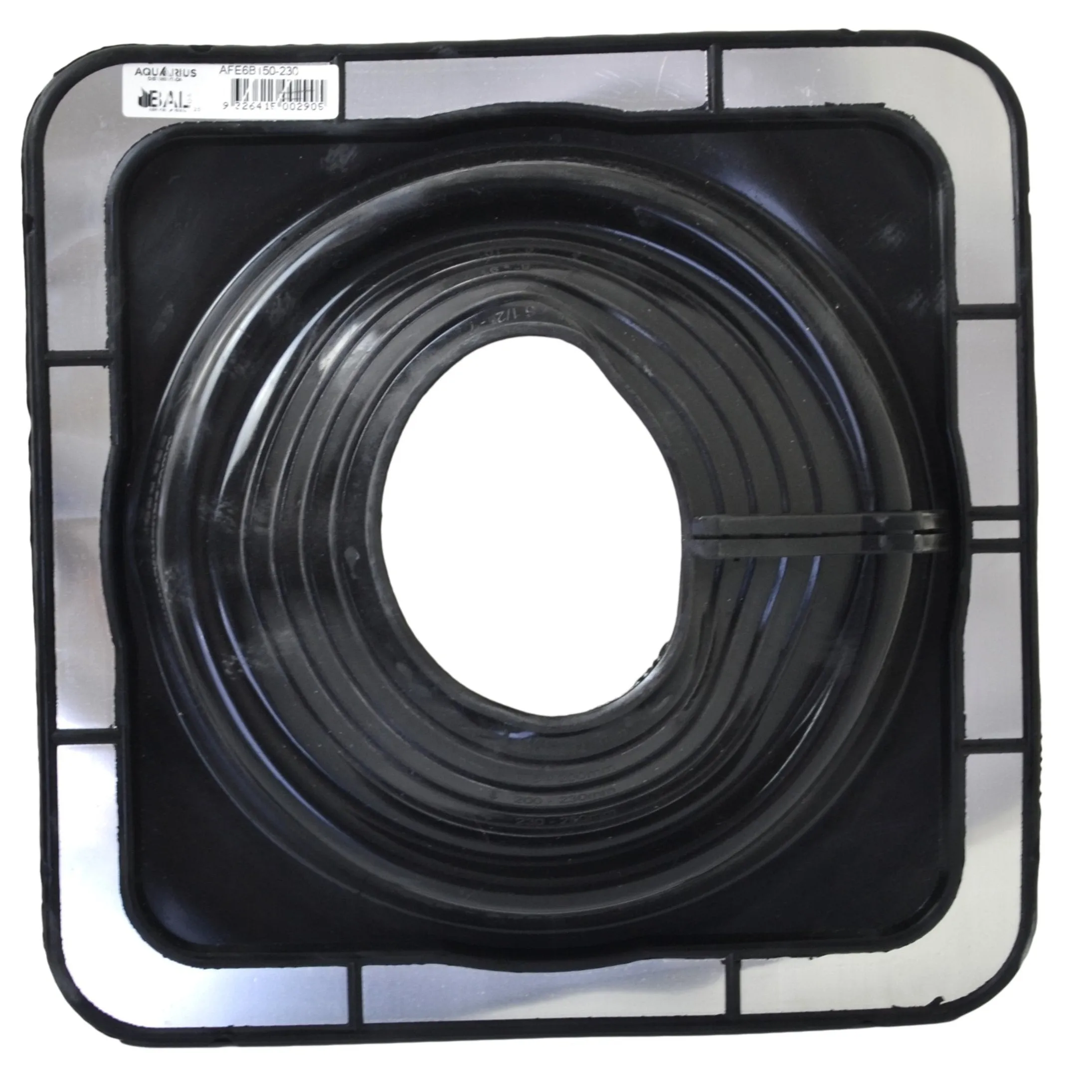

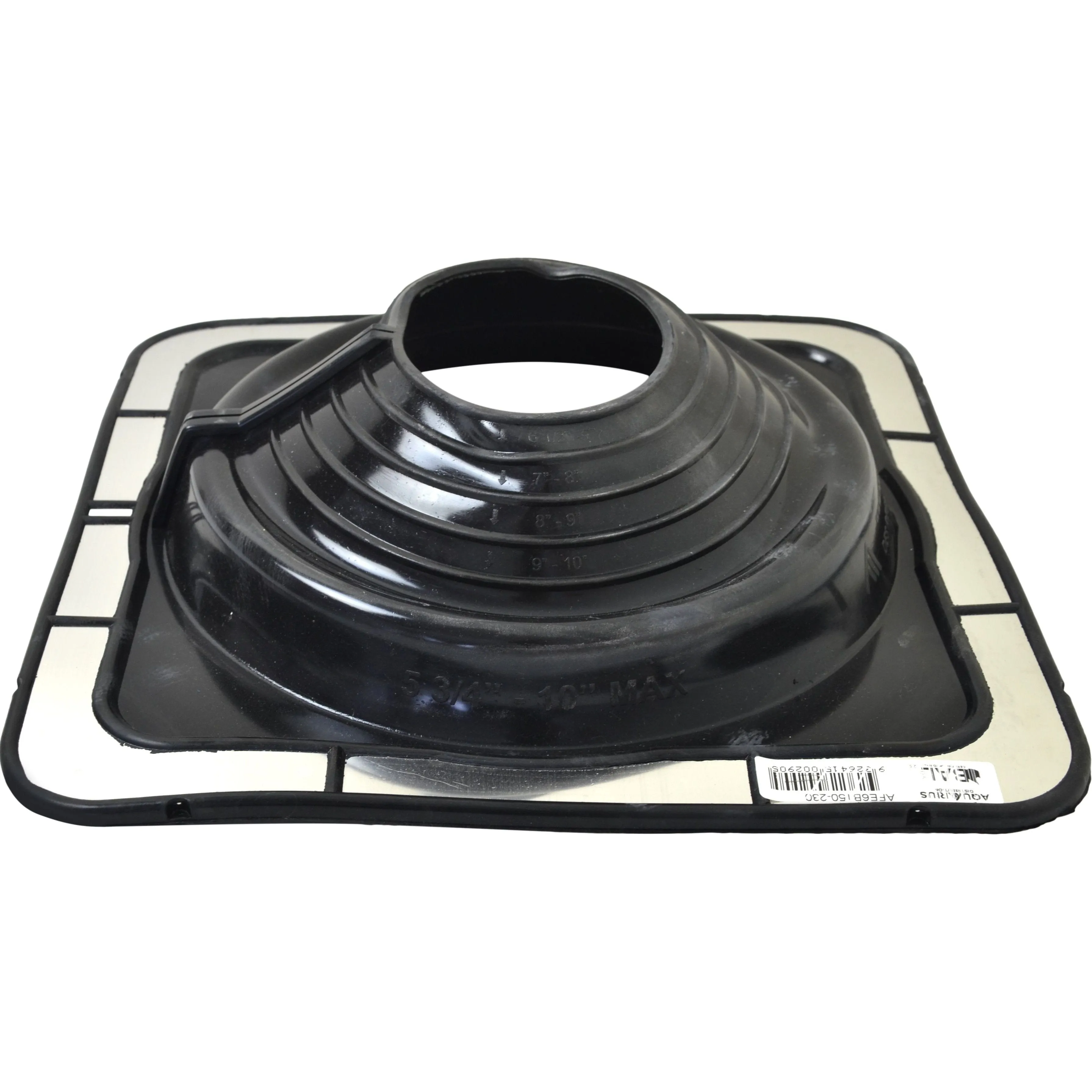

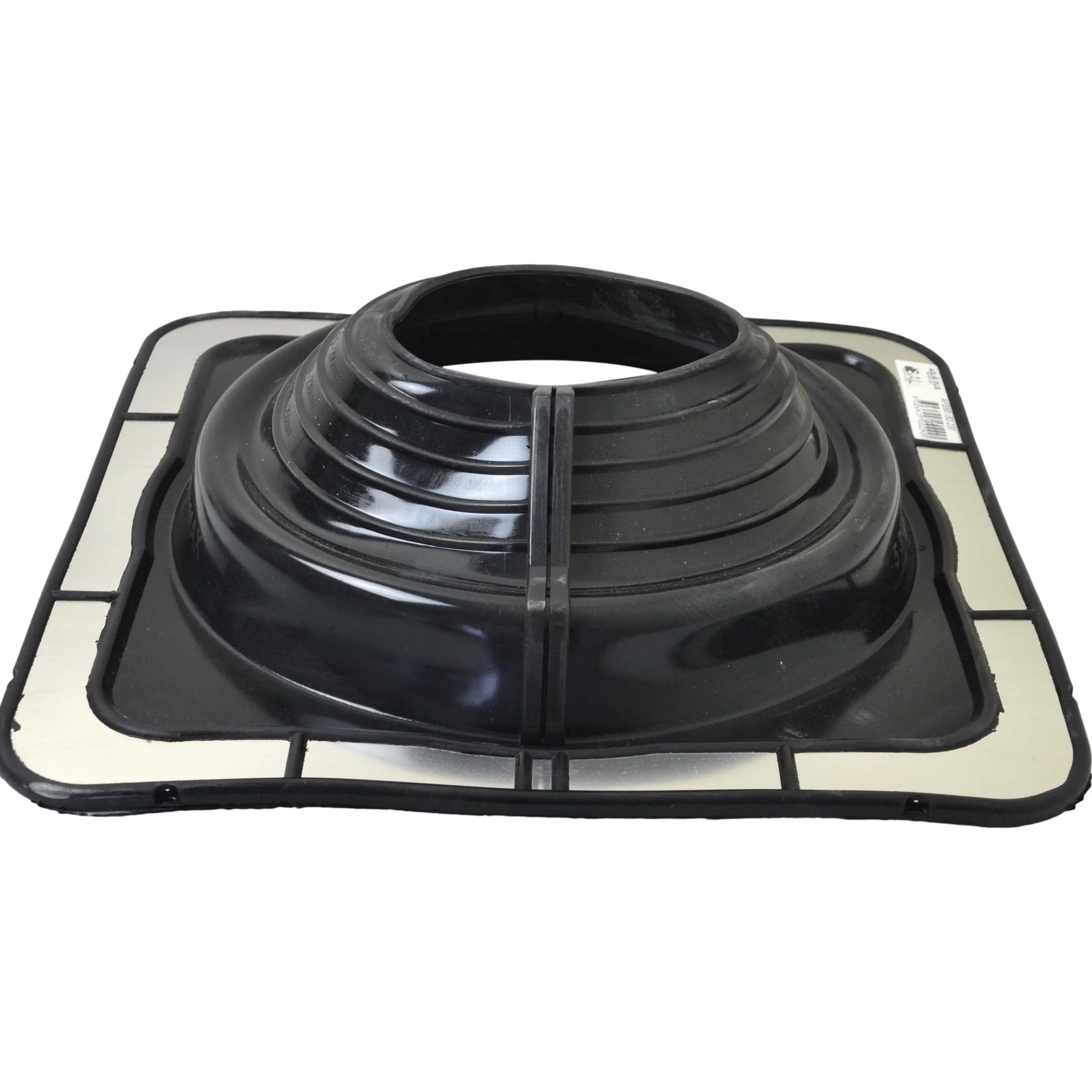

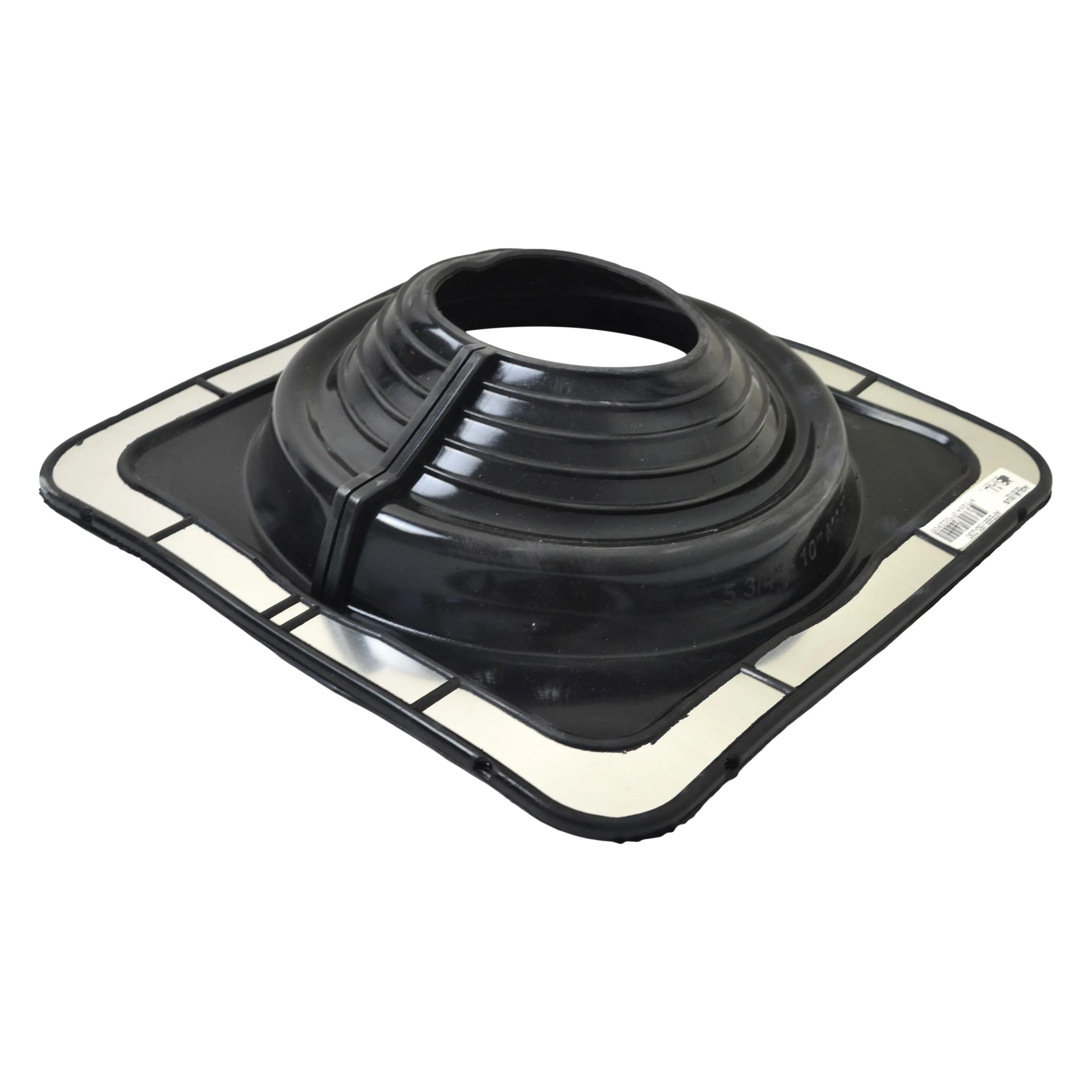

Aquaseal FlashRite #6 Metal Roof Pipe Flashing EPDM Black 150-230mm is expertly engineered to create a watertight seal around pipe penetrations on metal roofs. Designed to withstand harsh Australian weather conditions, this FlashRite is tailored for 150-230mm pipes and offers UV resistance and temperature stability ranging from -50°C (-58°F) to 200°C (392°F). It is ideal for BAL29 areas and comes with a 20-year warranty, making it a reliable choice for Australian conditions.
PRODUCT FEATURES :
- FlashRite #6 Metal Roof Pipe Flashing EPDM Black 150-230mm
- Part No : AFE6B150-230
- FlashRite is for 150-230mm pipes and is suitable for metal roofs only
- Made from EPDM, UV resistant, and has a temperature between -50°C (-58°F) to 200°C (392°F).
- Suitable for both standard and retrofit application.
- Supplied with 6 stainless steel retrofit clips
- Designed and manufactured to withstand the harsh Australian weather conditions.

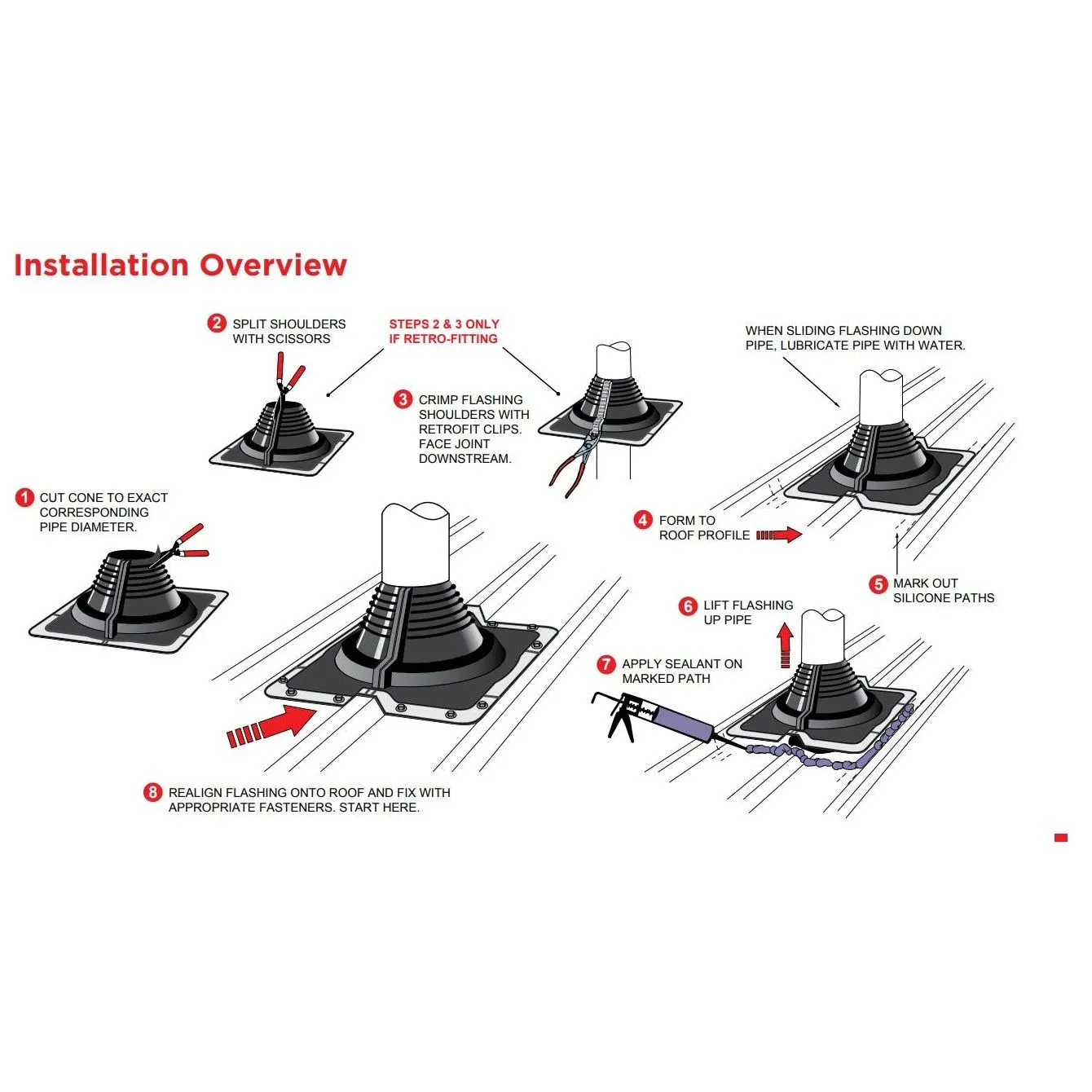

Installation :
- Cut the cone to the exact matching pipe diameter.
- Slide down the pipe using water to lubricate.
- Form to match the roof profile.
- Mark out edge for silicone seal.
- Lift flashing to allow access for silicone seal.
- Apply silicone.
- Replace flashing to marked location and fix with selected fasteners.
Retrofit Installation :
- Cut the cone to the exact matching pipe diameter.
- Split shoulder with scissors down pathway.
- Situate around the pipe diameter, take care to face joint downstream.
- Crimp flashing shoulder with the provided clips.
- Form to match the roof profile.
- Mark out edge for silicone seal.
- Lift flashing to allow access for silicone seal.
- Apply silicone.
- Replace flashing to marked location and fix with selected fasteners.
| Aquaseal FlashRite | Black EPDM Code | Red Silicone Code | Grey EPDM Code | METRIC: Pipe Size (25° roof pitch) | METRIC: Pipe Size (45° roof pitch) | IMPERIAL: Pipe Size (25° roof pitch) | IMPERIAL: Pipe Size (45° roof pitch) | Base size | Max retrofit clips required |
|---|---|---|---|---|---|---|---|---|---|
| Mini | AFE0B3-20 | AFS0R3-20 | AFE0G3-20 | 3-25mm | 3-20mm | ⅛"-1" | ⅛"-¾" | 80x80mm | n/a |
| No. 1 | AFE1B5-45 | AFS1R5-45 | AFE1G5-45 | 5-50mm | 5-40mm | ⅕"-2" | ⅕"-1½" | 120x120mm | n/a |
| No. 2 | AFE2B25-70 | AFS2R25-70 | AFE2G25-70 | 25-70mm | 25-65mm | 1"-2¾" | 1"-2½" | 163x163mm | 3 |
| No. 3 | AFE3B50-100 | AFS3R50-100 | AFE3G50-100 | 50-100mm | 50-80mm | 2"-4" | 2"-3⅛" | 210x210mm | 4 |
| No. 4 | AFE4B90-150 | AFS4R90-150 | AFE4G90-150 | 90-150mm | 90-130mm | 3½"-6" | 3½"-5" | 260x260mm | 5 |
| No. 5 | AFE5B125-200 | AFS5R125-200 | AFE5G125-200 | 125-200mm | 125-165mm | 5"-8" | 5"-6½" | 313x313mm | 5 |
| No. 6 | AFE6B150-230 | AFS6R150-230 | AFE6G150-230 | 150-250mm | 150-230mm | 6"-10" | 6"-9" | 370x370mm | 6 |
| No. 7 | AFE7B200-300 | AFS7R200-300 | AFE7G200-300 | 195-300mm | 195-255mm | 8"-11⅚" | 8"-10" | 440x440mm | 7 |
