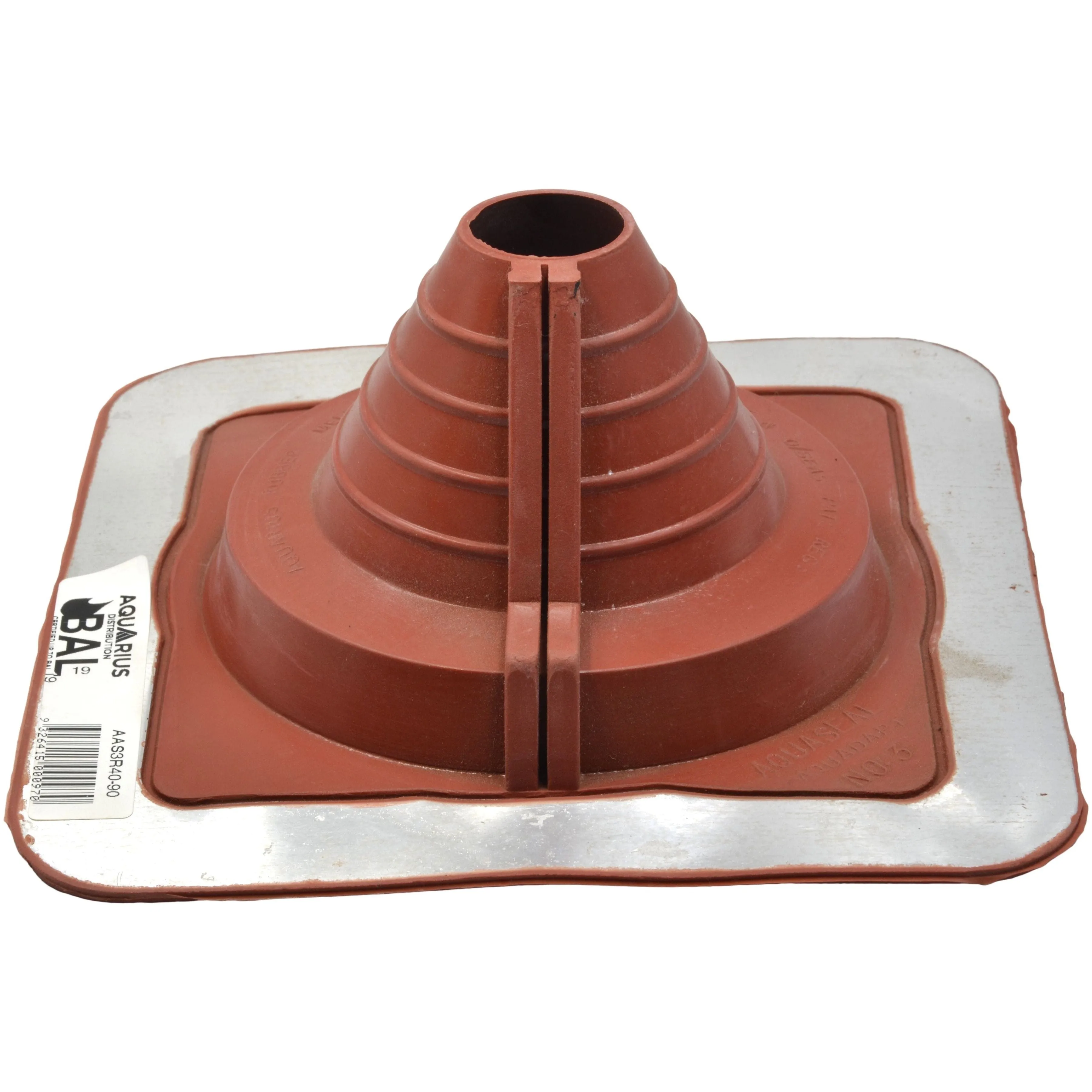

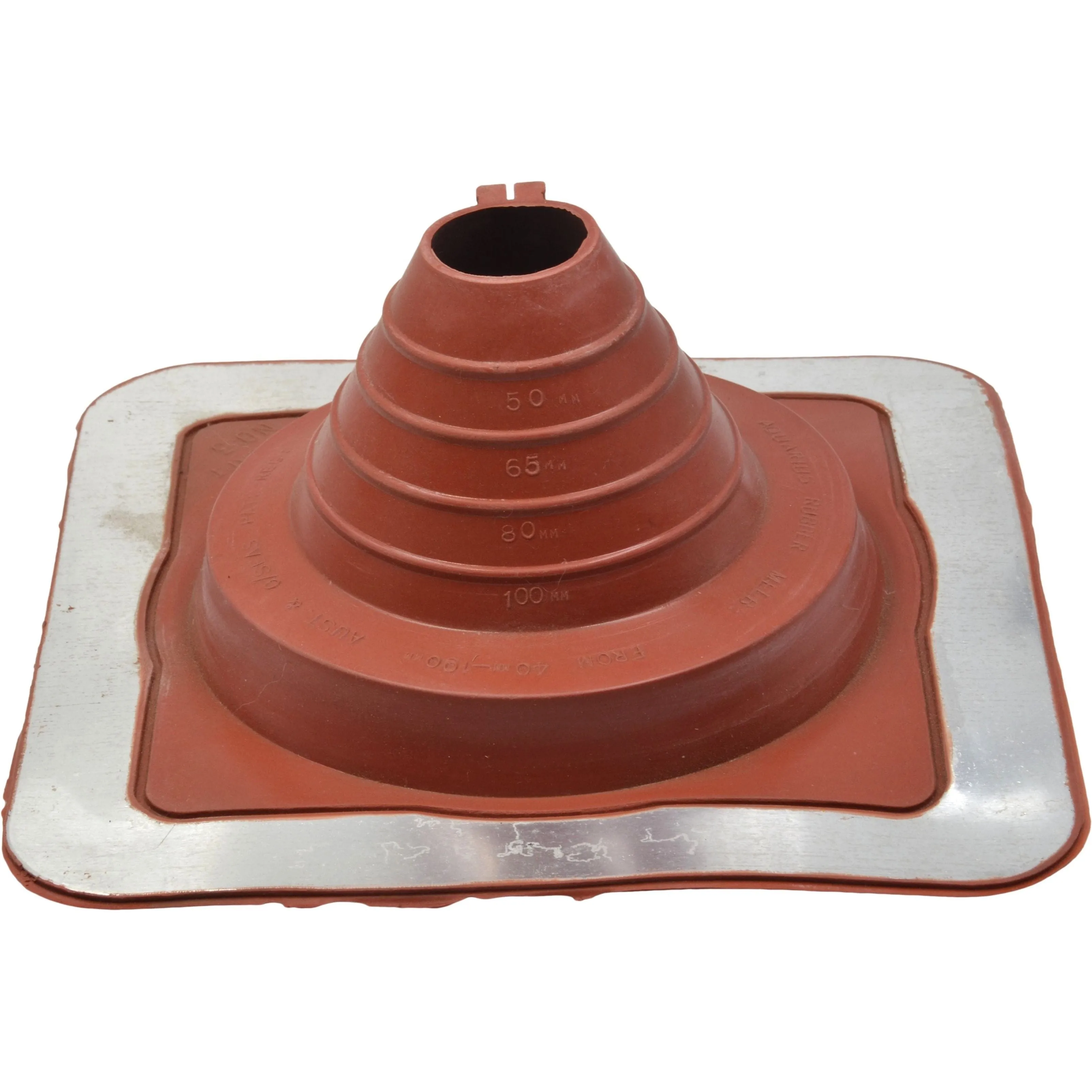

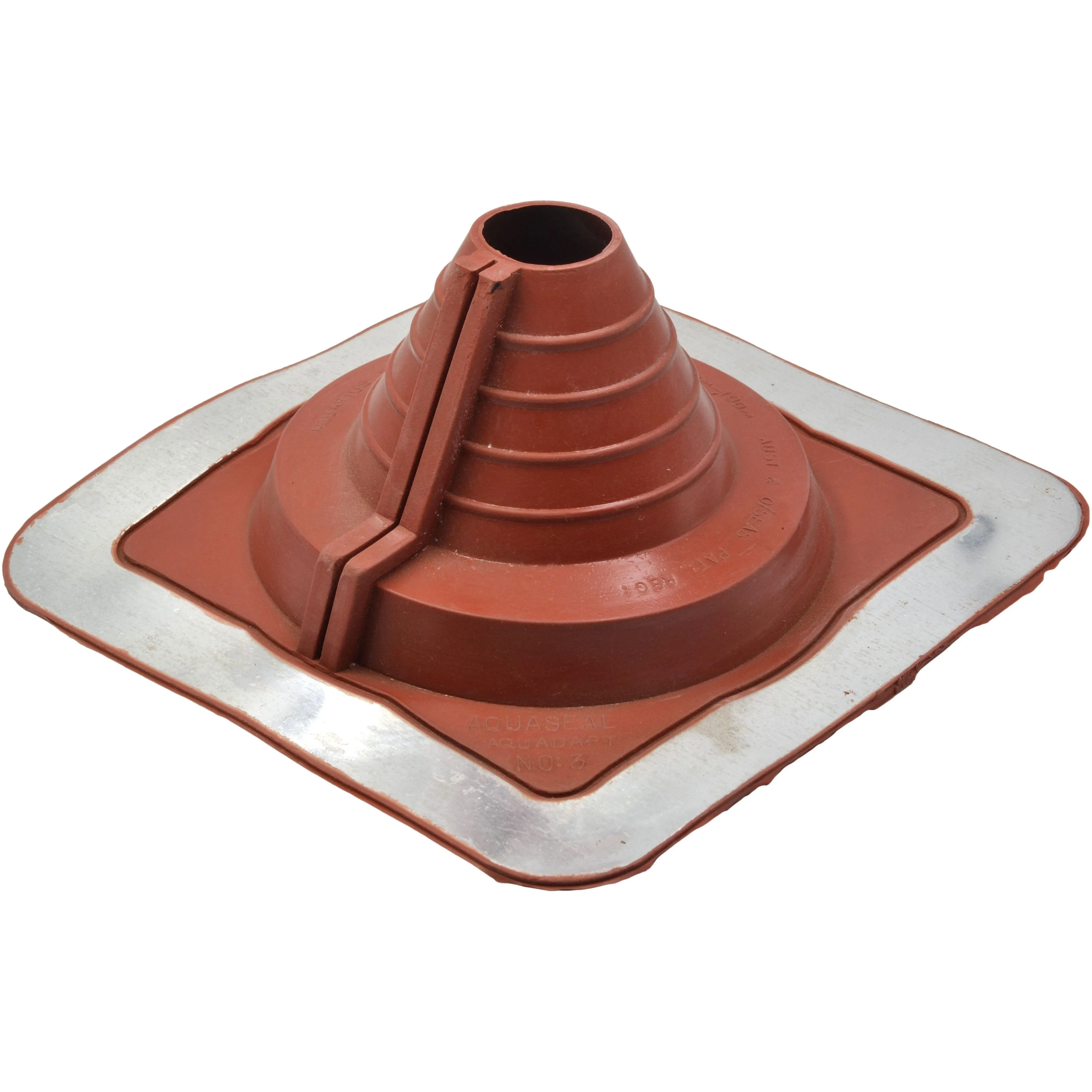

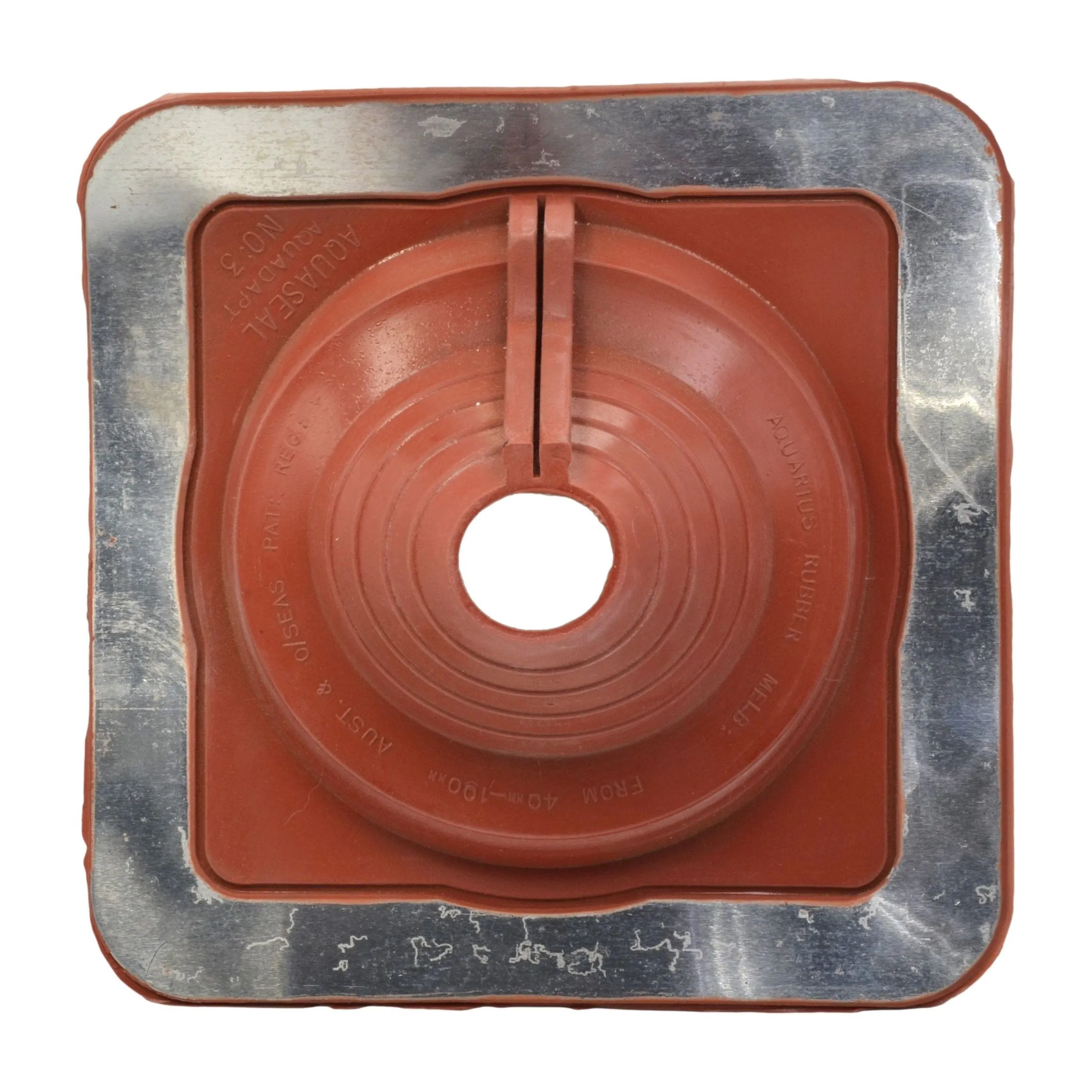

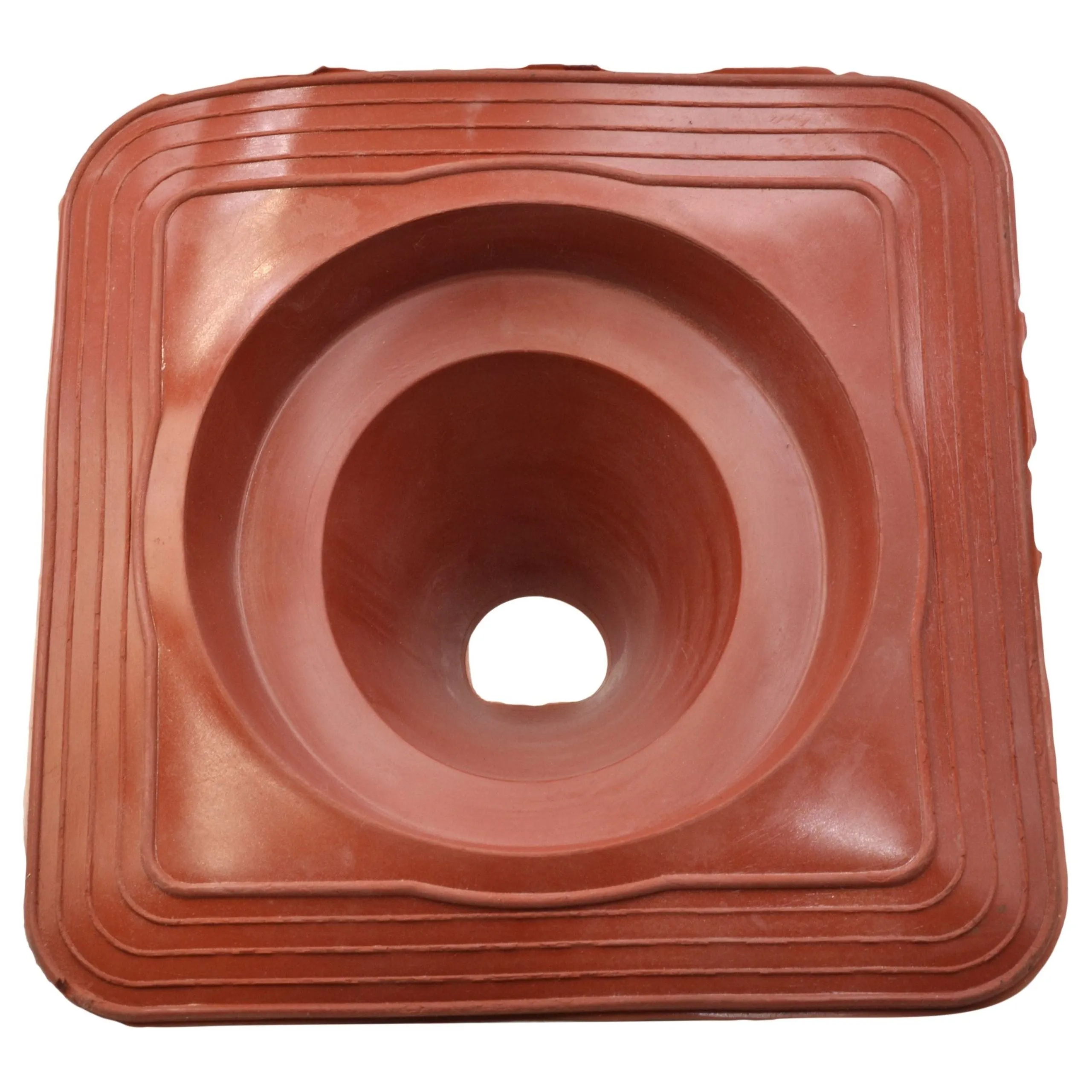

AAS3R40-90 Aquadapt Roof Flashing
Aquaseal Aquadapt #3 Roof Pipe Flashing Silicone Red 40-90mm is expertly engineered to create a watertight seal around pipe penetrations on roofs. Designed to withstand harsh Australian weather conditions, this Aquadapt is tailored for 40-90mm pipes and offers UV resistance and temperature stability ranging from -50°C (-58°F) to 200°C (392°F). It is ideal for BAL29 areas and comes with a 20-year warranty, making it a reliable choice for Australian conditions.
PRODUCT FEATURES :
- Aquadapt #3 Roof Pipe Flashing Silicone Red 40-90mm
- Part No : AAS3R40-90
- Aquadapt is suitable for 40-90mm pipes.
- Made from Silicone, UV resistant, and has a temperature between -50°C (-58°F) to 200°C (392°F).
- Suitable for both standard and retrofit application.
- Supplied with 5 stainless steel retrofit clips
- Designed and manufactured to withstand the harsh Australian weather conditions.

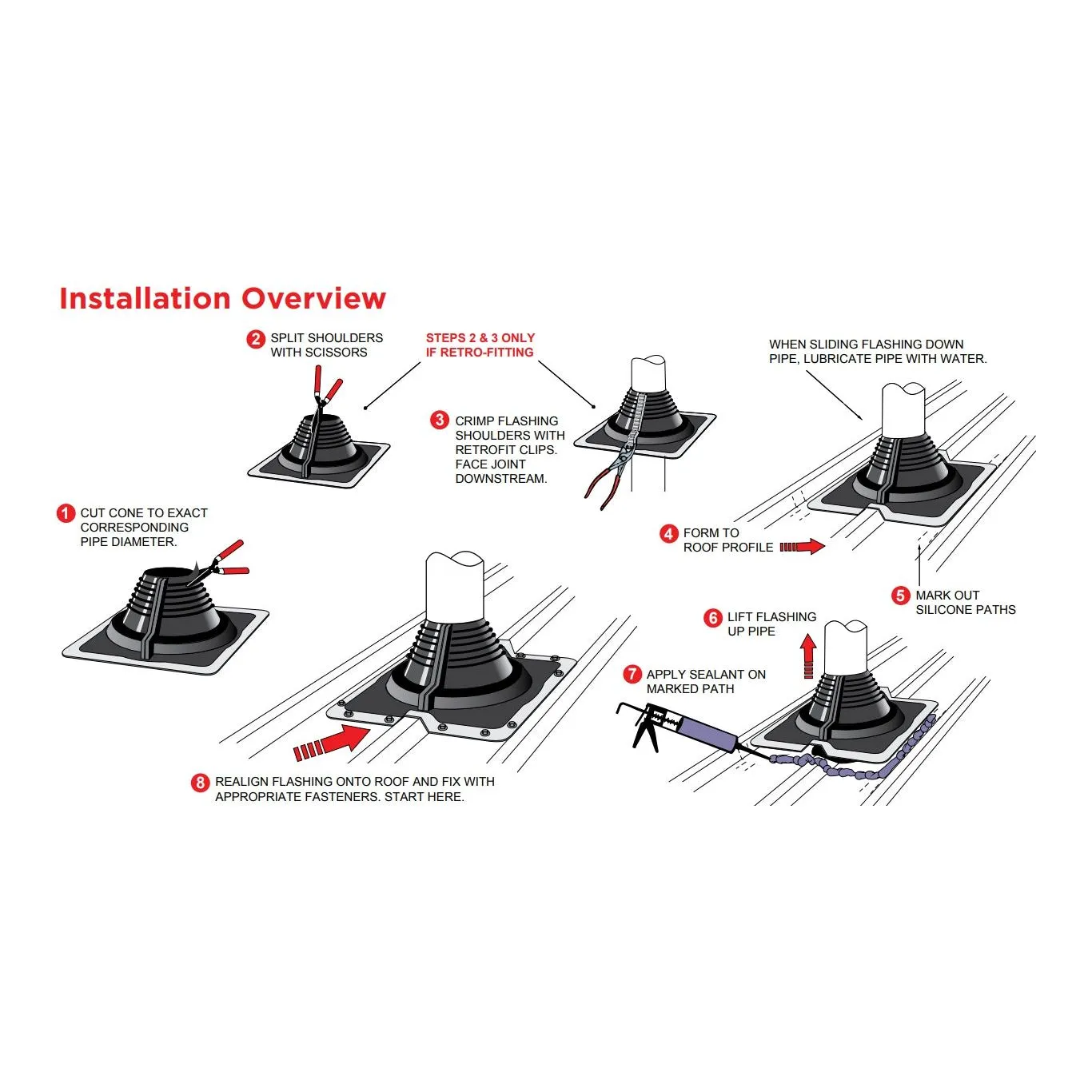

Installation :
- Cut the cone to the exact matching pipe diameter.
- Slide down the pipe using water to lubricate.
- Form to match the roof profile.
- Mark out edge for silicone seal.
- Lift flashing to allow access for silicone seal.
- Apply silicone.
- Replace flashing to marked location and fix with selected fasteners.
Retrofit Installation :
- Cut the cone to the exact matching pipe diameter.
- Split shoulder with scissors down pathway.
- Situate around the pipe diameter, take care to face joint downstream.
- Crimp flashing shoulder with the provided clips.
- Form to match the roof profile.
- Mark out edge for silicone seal.
- Lift flashing to allow access for silicone seal.
- Apply silicone.
- Replace flashing to marked location and fix with selected fasteners.
| Aquaseal Aquadapt | Black EPDM Code | Red Silicone Code | METRIC: Pipe Size (25° roof pitch) | METRIC: Pipe Size (45° roof pitch) | IMPERIAL: Pipe Size (25° roof pitch) | IMPERIAL: Pipe Size (45° roof pitch) | Base size | Max retrofit clips required |
|---|---|---|---|---|---|---|---|---|
| No. 1 | AAE1B8-40 | n/a | 8-50mm | 8-40mm | 1⁄3"-2” | 1⁄3"-1½” | 115x115mm | 4 |
| No. 2 | AAE2B10-70 | AAS2R10-70 | 10-90mm | 10-70mm | ⅜"-3⅝" | ⅜"-2¾" | 155x155mm | 5 |
| No. 3 | AAE3B40-90 | AAS3R40-90 | 40-100mm | 40-90mm | 1½"-4" | 1½"-3½" | 203x203mm | 5 |
| No. 4 | AAE4B75-135 | AAS4R75-135 | 75-150mm | 75-135mm | 3"-6" | 3"-5⅓" | 255x255mm | 6 |
| No. 5 | AAE5B125-180 | AAS5R125-180 | 125-200mm | 125-180mm | 5"-8" | 5"-7" | 305x305mm | 6 |
| No. 6 | AAE6B145-230 | AAS6R145-230 | 145-250mm | 145-230mm | 6"-10" | 6"-9" | 355x355mm | 7 |
| No. 7 | AAE7B195-250 | AAS7R195-250 | 195-300mm | 195-250mm | 8"-11⅚" | 8"-10" | 432x432mm | 7 |
| No. 8 | AAE8B230-380 | AAS8R230-380 | 230-380mm | 230-355mm | 9"-15" | 9"-14" | 540x600mm | 9 |
| No. 9 | AAE9B315-450 | AAS9R315-450 | 315-500mm | 315-450mm | 12½"-19⅔" | 12½"-17¾" | 650x720mm | 11 |
| No. 10 | AAE10B400-730 | AAS10R400-730 | 400-630mm | 400-630mm | 15¾"-29½" | 15¾-24⅚" | 965x995mm | 15 |
