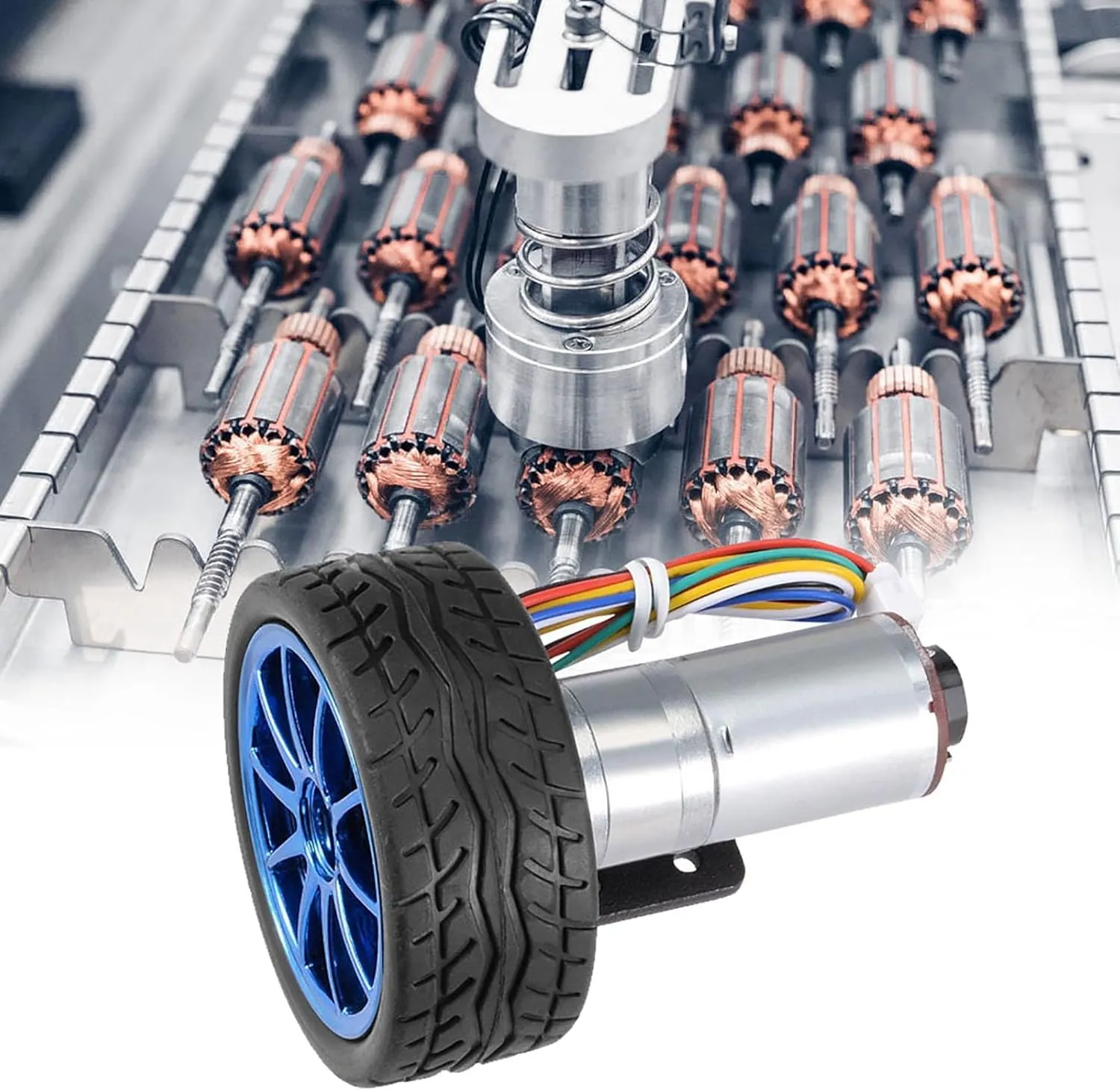

- [Carbon Brushes] Provides excellent commutation performance, with good electrical and thermal conductivity, and long service life.
- [Multi-purpose Use] Suitable for smart cars, robots, and printers, offering versatile compatibility across various applications.
- Made of metal gears for impact resistances and reduced noise, extending the lifespan of the
- [High-strength Magnetic Tile] Offers strong power and torsion, along with a fully enclosed structure,ensuring reliability.
- [High-accuracy Rotor] Made with materials for durability, high conductivity.
Specification:
ReductionRatio No-Load Rated Locked-Rotor L Size
Rated Voltage Speed Current Speed Current Torsion Torsion Current
V ±10%RPM A ±10%RPM A KG.CM KG.CM A MM
4.4 24 1360 0.04 1000 0.16 0.1 0.4 0.6 18
9.6 24 620 0.04 500 0.16 0.2 0.9 0.6 17.5
21.3 24 280 0.04 200 0.16 0.4 2 0.6 19
35.5 24 170 0.04 130 0.16 0.69 3.3 0.6 21
46.8 24 130 0.04 100 0.16 0.9 4.4 0.6 21
78 24 77 0.04 60 0.16 1.5 5.5 0.6 23
103 24 60 0.04 50 0.16 2 7.3 0.6 23
130 24 46 0.04 40 0.16 2.5 9.2 0.6 25
171 24 35 0.04 30 0.16 3.3 Do not block or instantaneous load reversal 25
226 24 26 0.04 20 0.16 4.4 25
377 24 16 0.04 15 0.16 7.3 27
500 24 12 0.04 10 0.16 9.7 27 Optional 1000RPM, 500RPM, 200RPM, 130RPM, 100RPM, 60RPM, 50RPM, 40RPM, 30RPM, 20RPM, 15RPM, 10RPM
Package List:
2 x Motor
2 x Motor Base
2 x Tire
2 x Coupling
2 x Hex Wrench
4 x Coupling Screw
12 x Small Screw
2 x Large Screw
